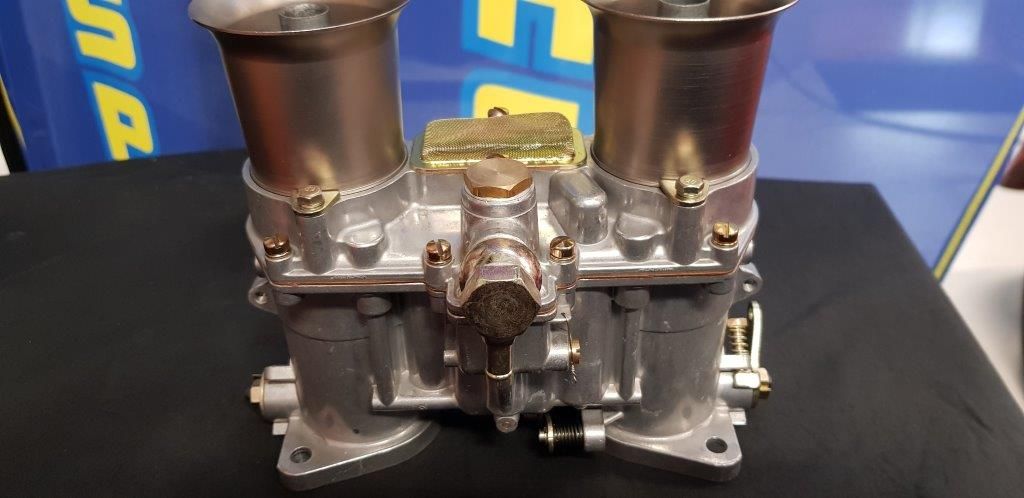

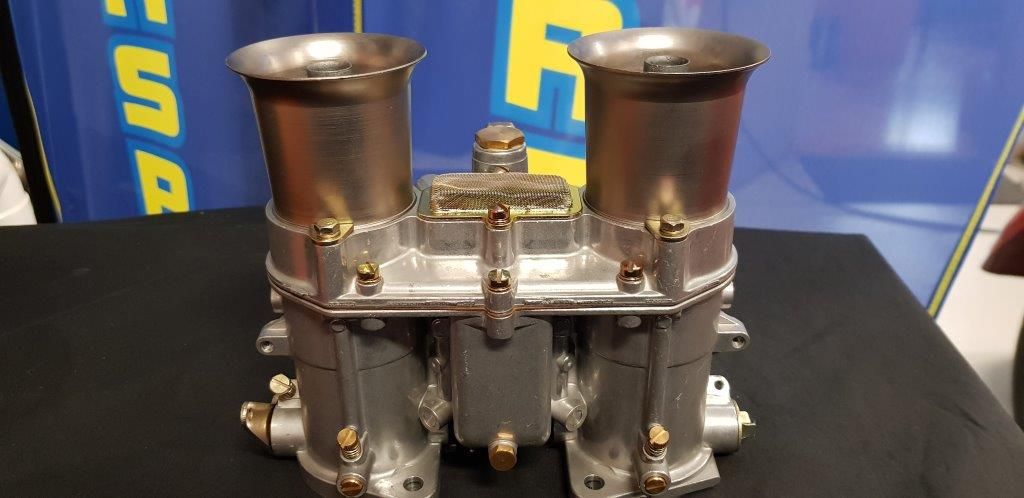

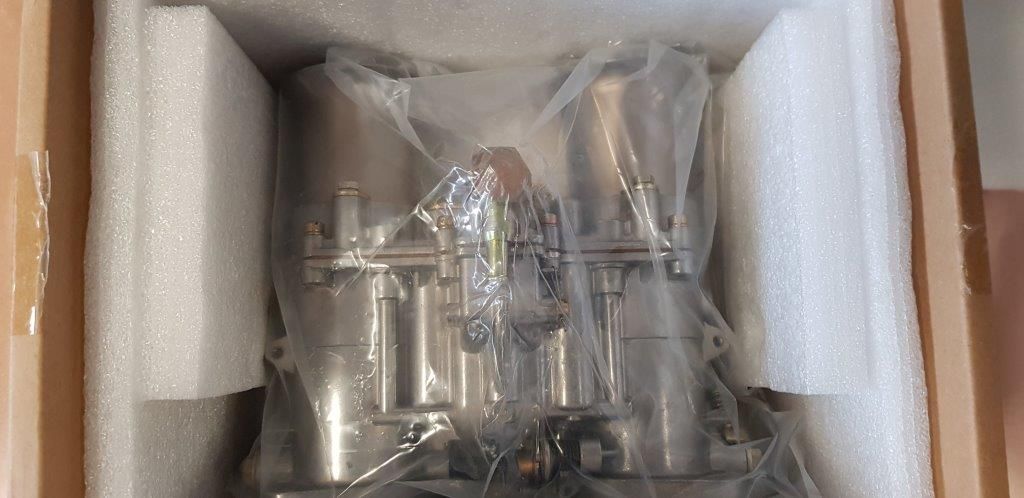

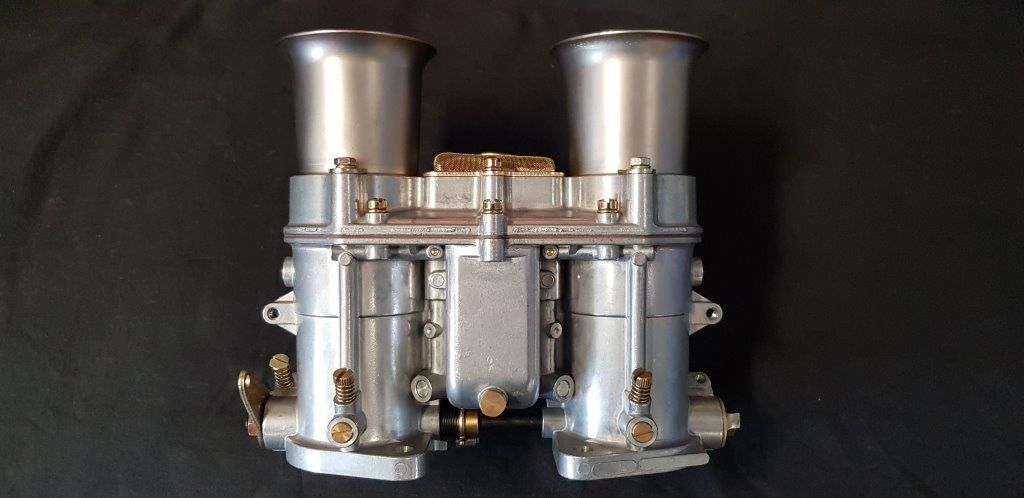

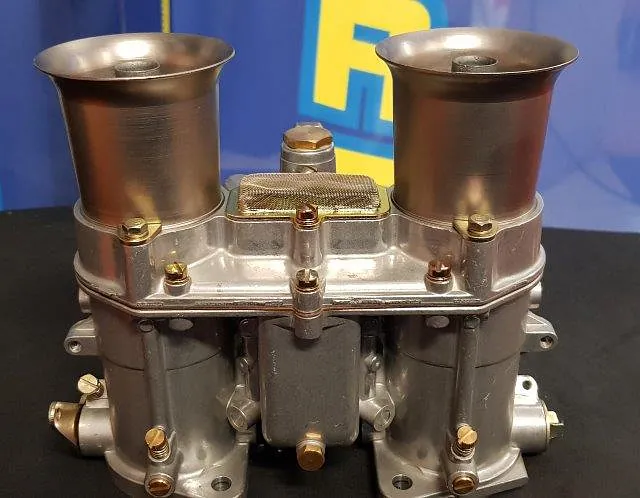

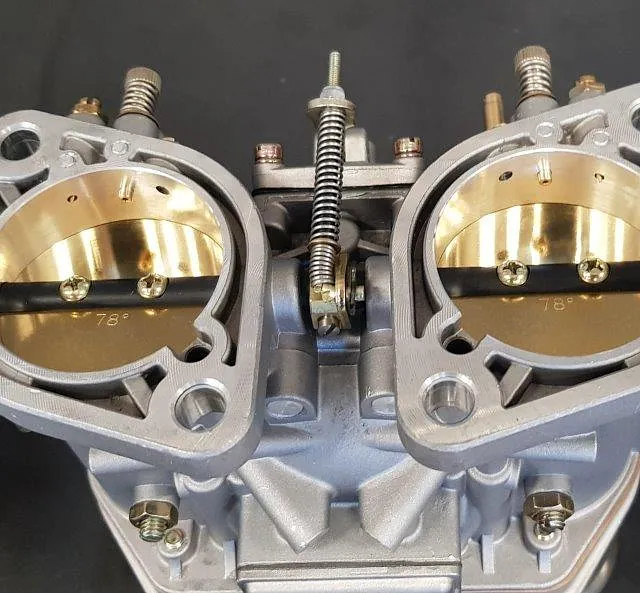

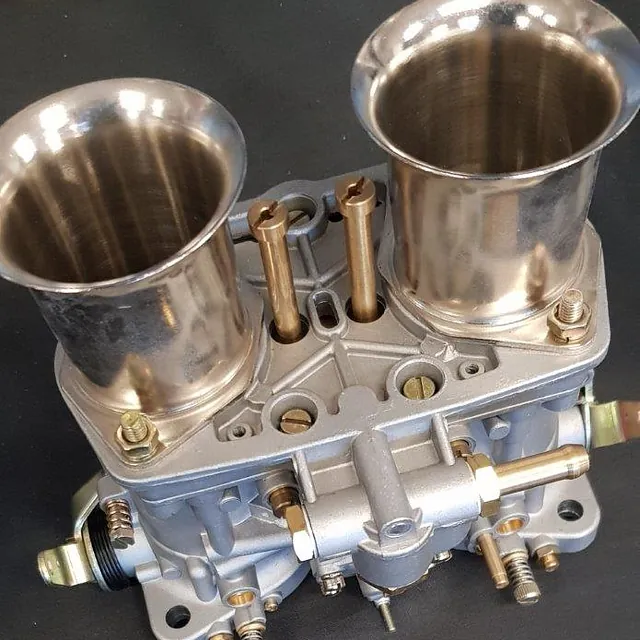

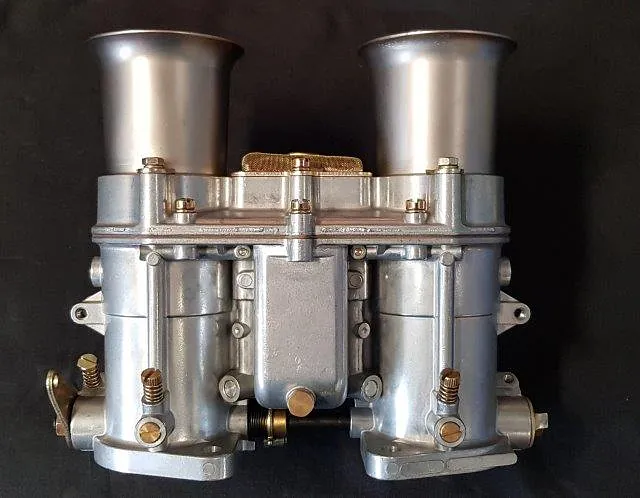

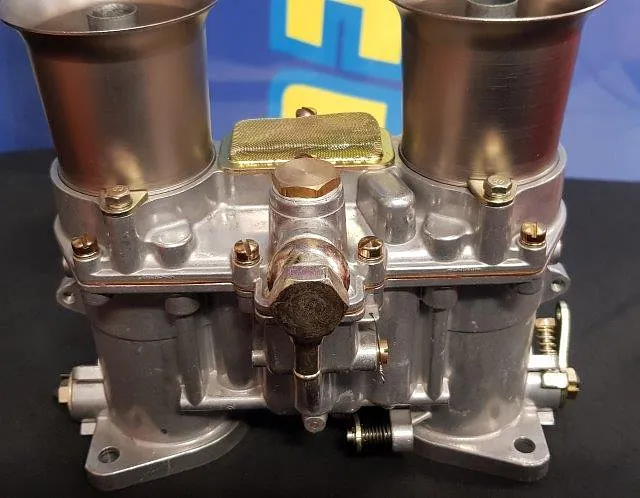

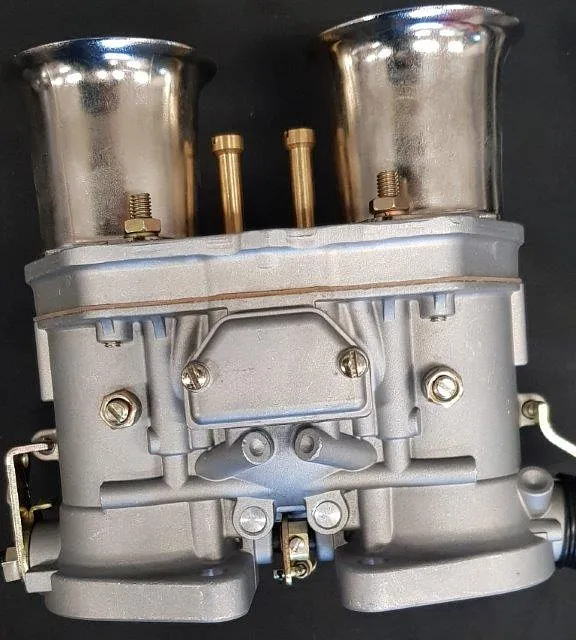

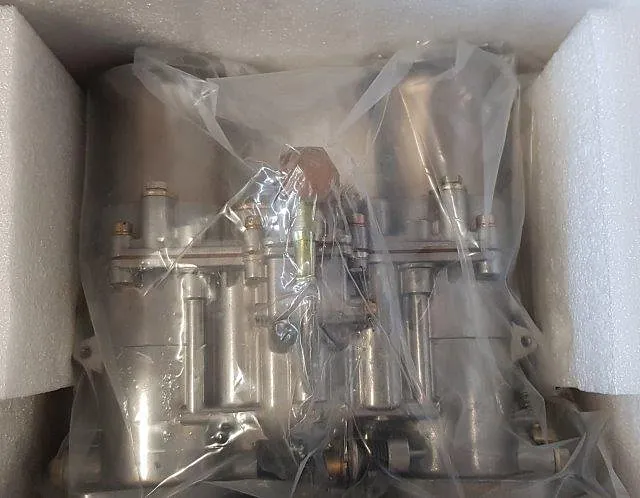

48 IDA REPLICA

Works great, looks great, sounds great!

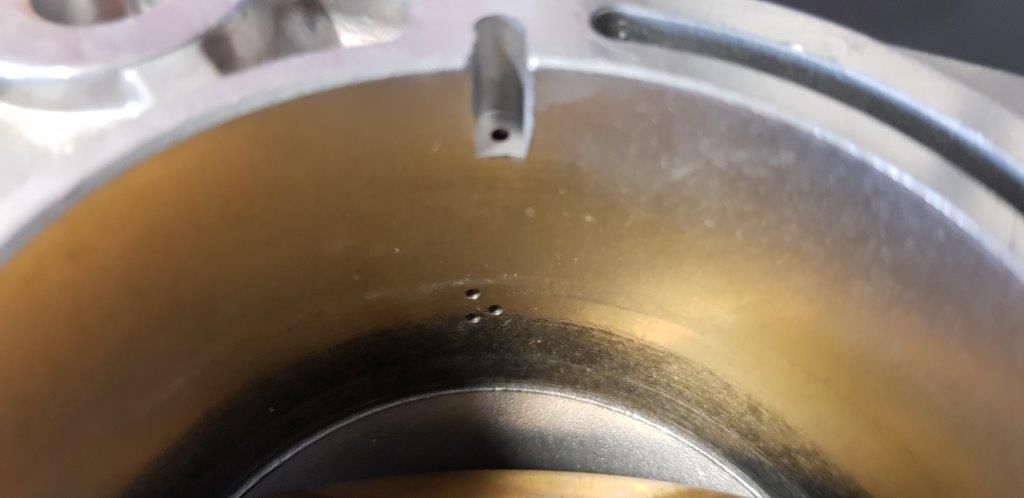

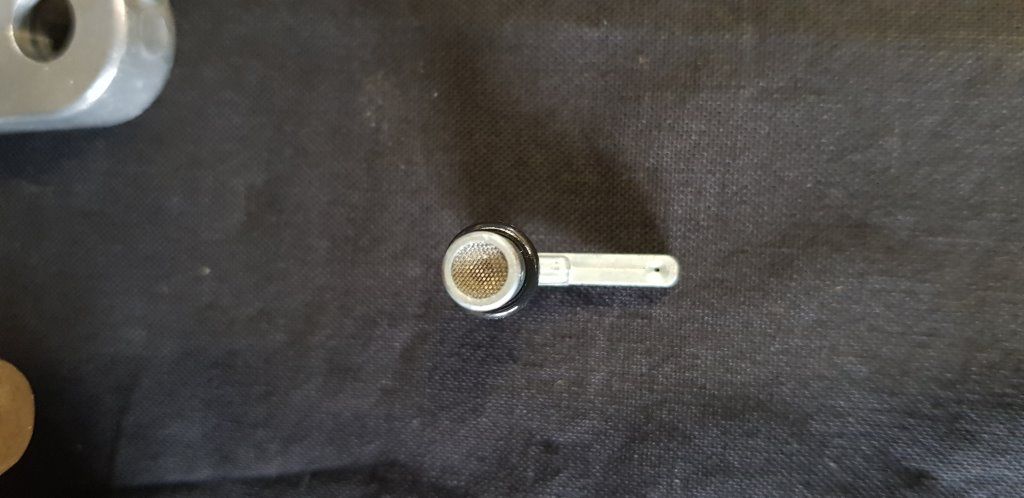

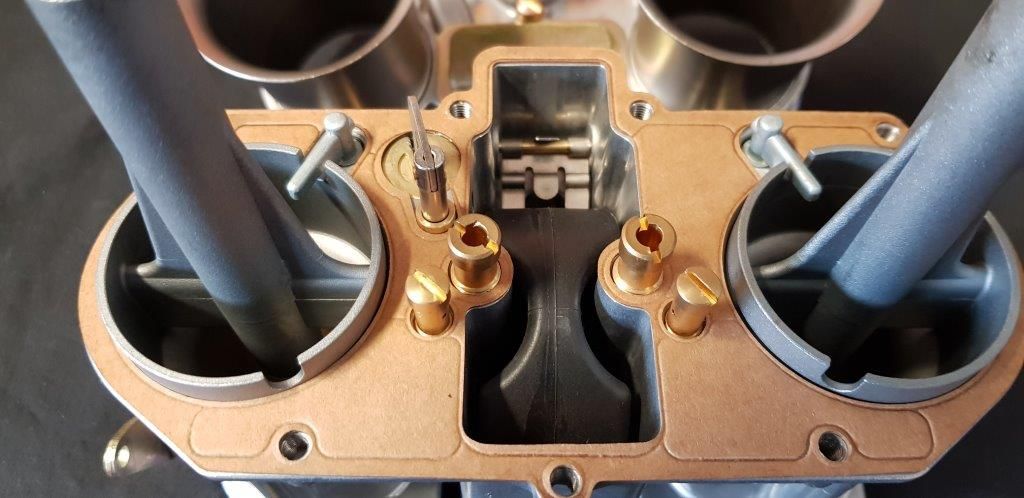

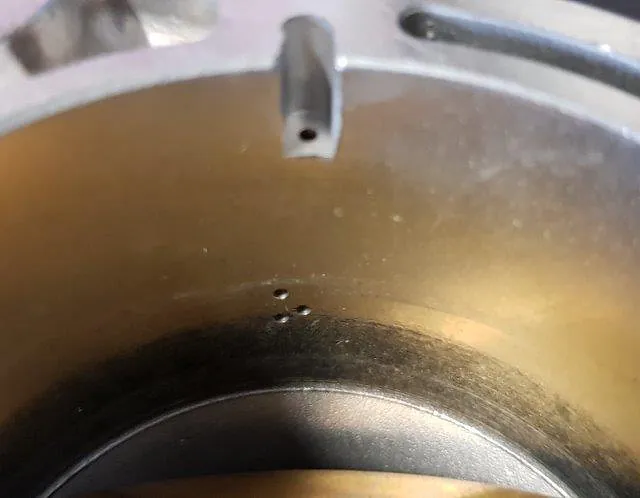

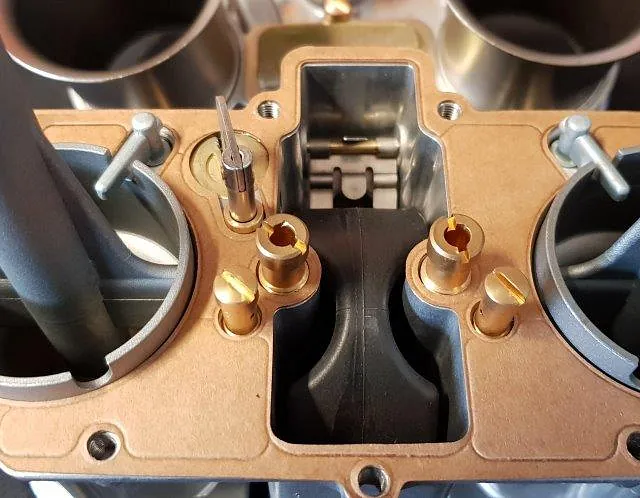

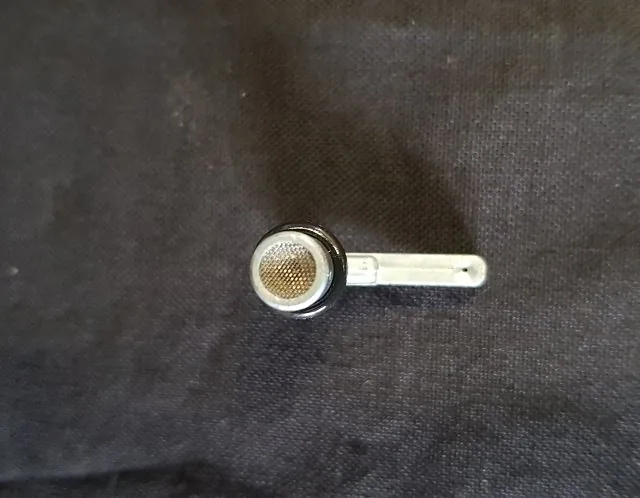

Very nice castings and machining. Comes with three progression holes. Screen on acc pump nozzel. Small ledge on the carb lid putting pressure on the gasket prevents leaking.



Price for Europe 4995 SEK approx .
Outside Europe 3996 SEK approx.
Raptor fuel parts fits.

JPM Raptor Power Jet

Raptor Powerjet! A third fuel system for IDA carb. Makes the power band wider with a big increase in low and midrange performance, also some improvements in highrpm. Reduces the richness when throttle is opened suddenly at low rpm. Reduction of main jet, approx. 20-25numbers(165-140). The Powerjet has it's own jet which can be changed, delivers with three different jet sizes.

  • Makes the power band wider and smoother
  • More power thru the rpm band
  • Go wilder on street performance
  • More cam etc, still very drivable
  • Very easy and quick to install, all parts included in the kit
  • Old main fuel system works now as a mid fuel system and the powerjet as a high speed fuel system.

Raptor fuel system:

- Raptor venturies
- Raptor stack
- Raptor Powerjet

Pris: 11605 SEK


Raptor Powerjet pris: 4995 SEK

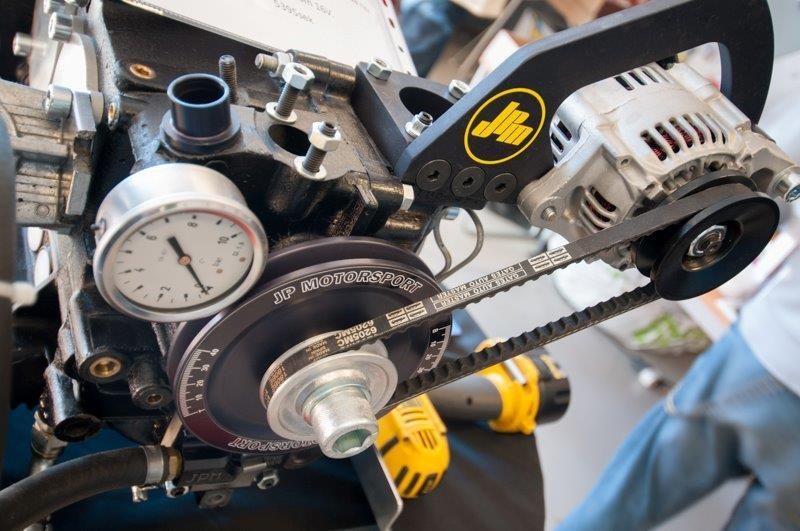

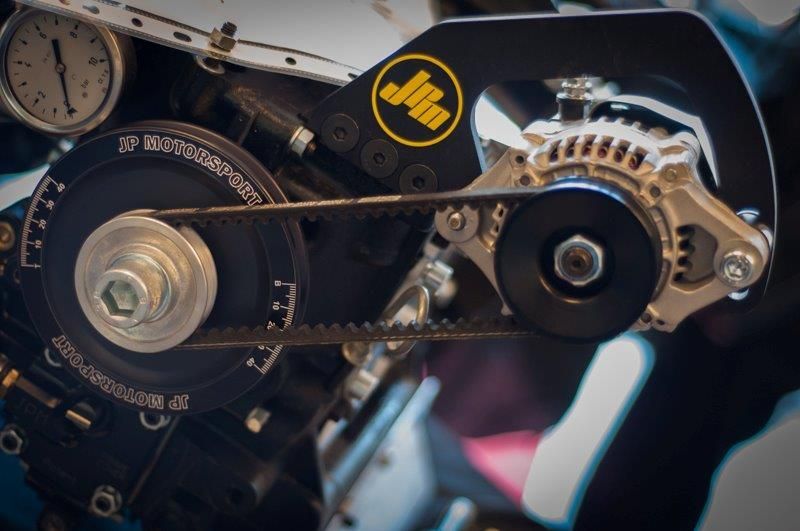

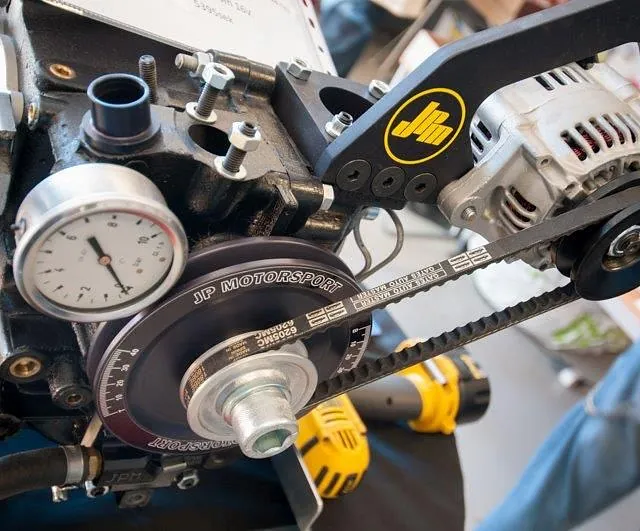

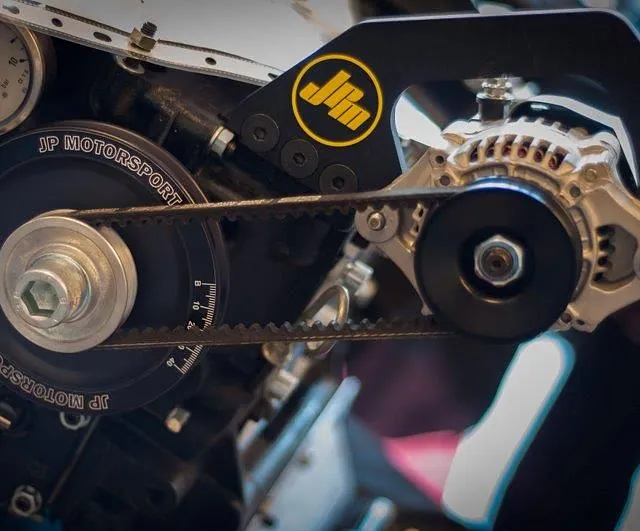

JPM Alternator Race Kit

Kit includes: Micro alternator 12V/55amp also available at 16V.
Anodized billet alu bracket. Crank pully with custom bolt, washer and belt.

Pris: 6995 SEK

JPM Cylinder 92-94mm

JPM Cylinder 92-94mm (121mm long,
up to 105mm OD). New stronger design, made out of same properties cast iron as in Volvo and Scania truck engine case.
Now available. 9495 SEK

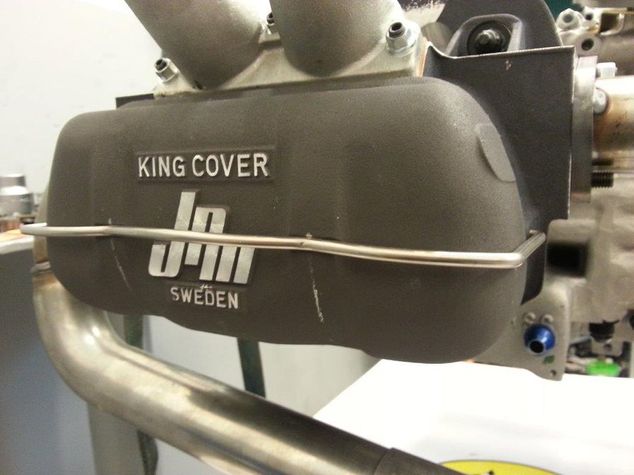

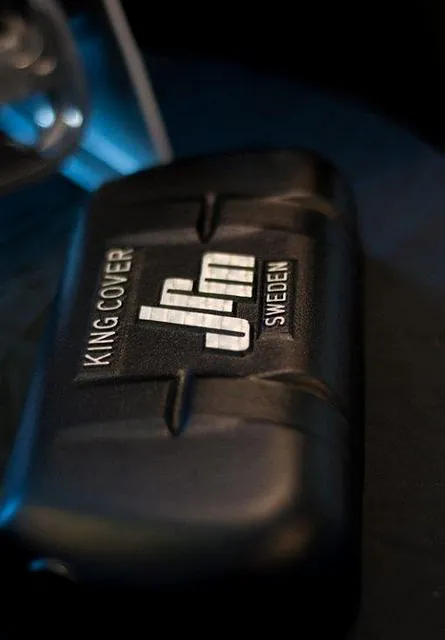

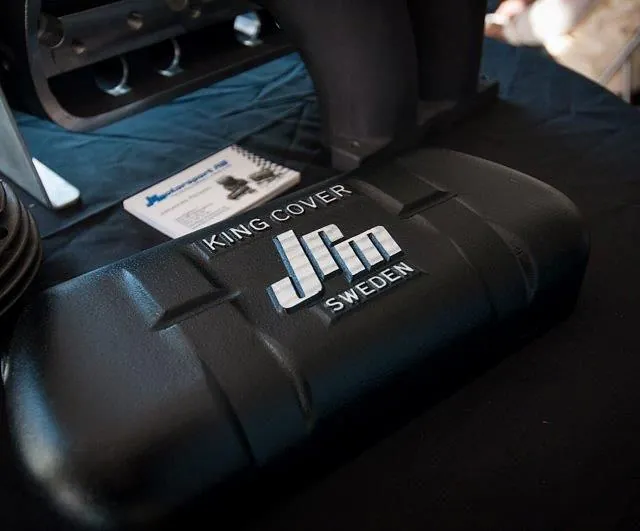

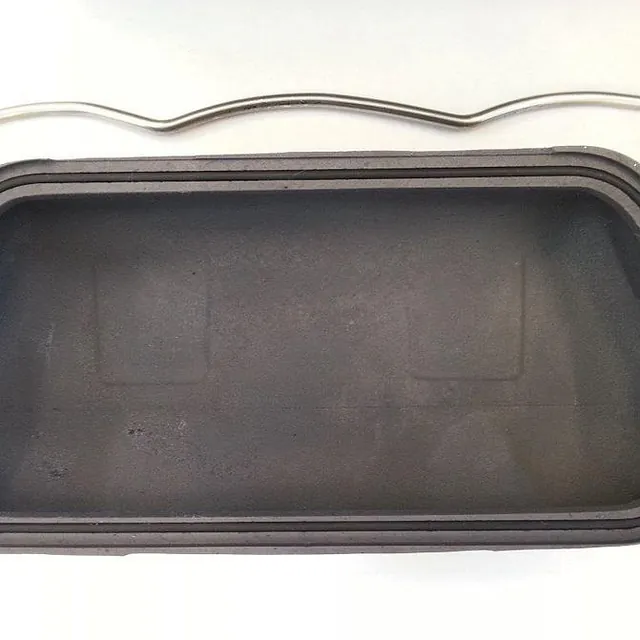

JPM King Cover Cast Alu Valve Cover

Now available. Pris 2495 SEK per par

King Cover with machined O-ring groove and stainless steel bail.

Instructions:

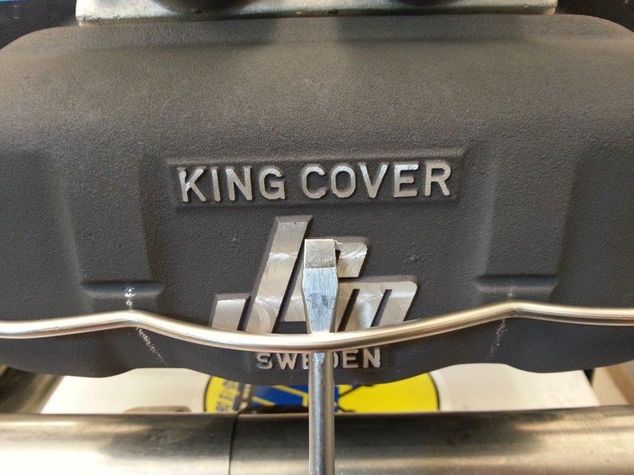

To scratch the King Cover as little as possible, put the screwdriver like this when securing the bail.

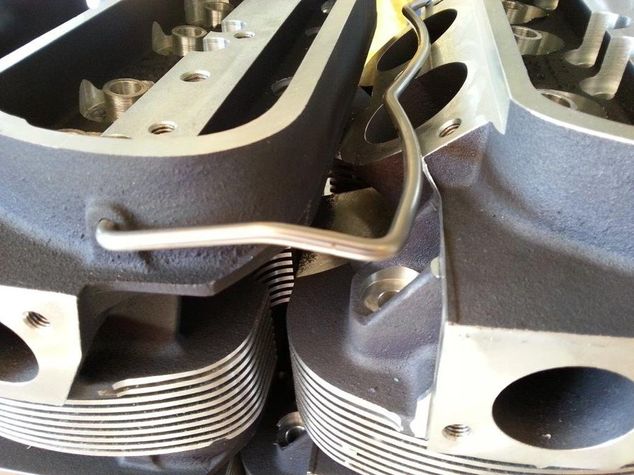

Some heads have a casting knob that has to be removed to fit the King Cover properly.

The bail mounting hole is drilled differently from head type to head type. If tension in bail should be too loose, make a bend as shown in the picture and tension is increased.

JPM Wasp Street & Strip Header

JPM and CSP teamed up to develop a revolutionary exhaust system for strip and street use!

The main features are:
- three step header for imporved volumetric efficiency
- adjustable header pipes for every engine width
- matching megaphone, creating strong suction over wide rpm range
- matching muffler for street use is afoot


- computer simulated design
- 2 years of development on dyno
- track tested

- for Beetles with Type 1 engines
- 3 different sizes available
- stainless steel- fits stock engine tin
- fits without body modifications

Pris:

Ask us about the price

JPM Push Rod Tube

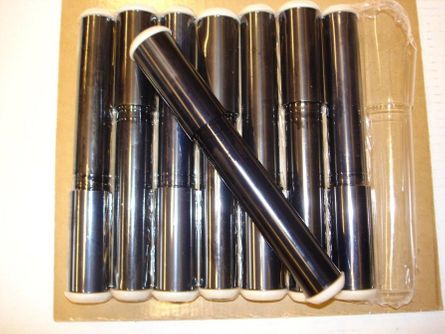

Push rod tubes with big id, developped to clearence our 7075 billet dual taper push rod. Precision machined in high quality aluminum with dual Viton o-rings.
Multiple o-ring groves makes it possible to reduce overall length.

Pris: 2895 SEK / 8 pcs

JPM MS250 Topplock

Bore size: 94mm/4"(4" six stud)
Valve size: 48x38mm
Rockers: two/five stud
Chamber cc. 94mm: aprox 37, 4" aprox 40
Flow at 25" H2O: In 255cfm Ex 180cfm
Flow at 28" H2O: In 270cfm Ex 190cfm
Valve spring: OTEVA90 dual
Manifold: JPM
Retainer: Titanium
Valves: Manley ss.


Price:

94 mm bore: 39.950 SEK / Complete pair

4" bore: 43.995 SEK / Complete pair

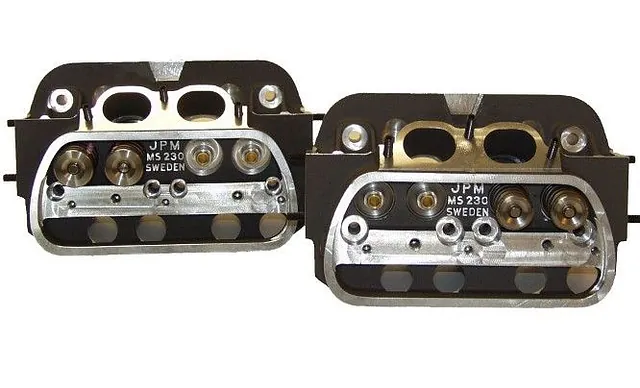

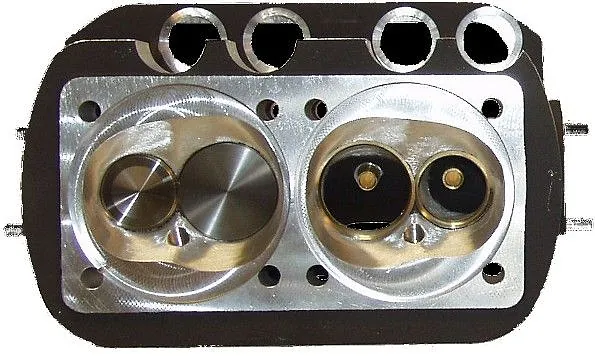

JPM MS230 Topplock

MS230 har upp till 50% mer kylarea än andra typer av topplock som t.ex. SF och CE, och 15% mer än standardgjutning.


Våra MS 230 topplock är gjorda av Alloy 356 värmebehandlade T6 kvalitet
(100-110 Brinell), och kommer med 48x38mm Manley Typ 4 ventiler, dubbla
OTEVA 90 ventilfjädrar, JPM Titan Retainers, och alubronze ventilsäten.

Förbränningskammaren är 60cc för 94mm borrning och 65cc för 4" borrning.
MS230 är primärt utvecklat för gatbruk, men kan naturligtvis användas även på fullracemotorer för bästa resultat.



Pris:
94 mm borrning: 35.995 SEK
4" borrning: 41.995 SEK

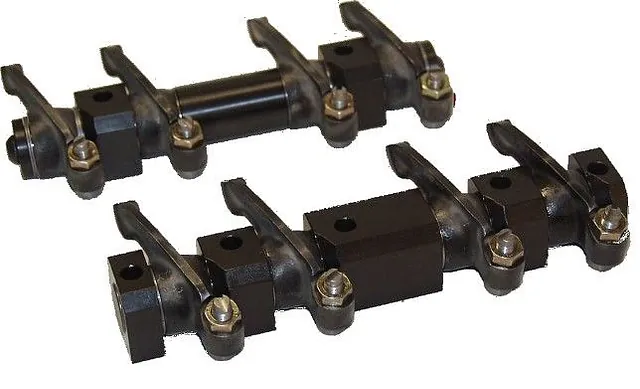

JPM Vipparmsbrygga

JPM vipparmar är smidda i Orvar Supreme stål och har genomgått ytterligare värmebehandling. Finns i utväxlingsförhållande 1,45-1,60:1. Axeln är 20mm diameter och tillverkad av värmebehandlat verktygsstål. Justerskruven är tillverkad i värmebehandlat H13 stål.



Pris:

2 bultar: Not avaliable
5 bultar: 17.250 SEK

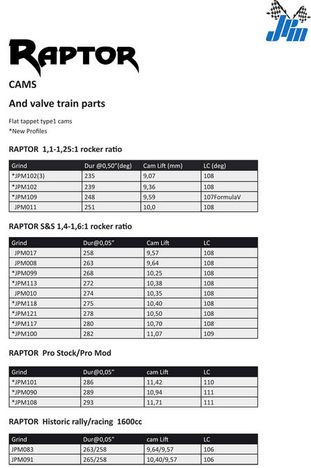

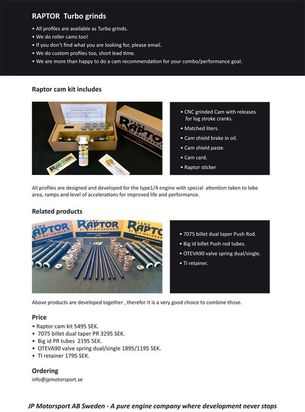

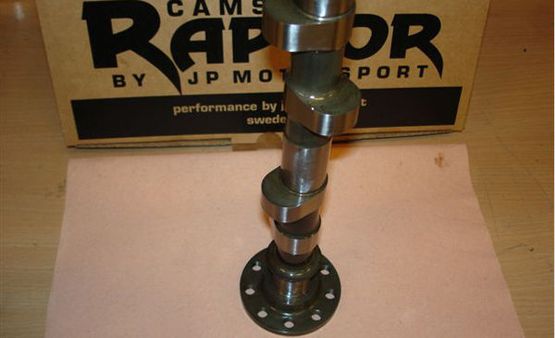

JPM Raptor Cams

JP Motorsport AB är
stolta över att erbjuda det senaste inom CNC kamaxel design. Vi arbetar med senaste mjukvara när vi designar ventillyftkurvan.
Specialtillverkade profiler finns också.
Pris: 5995 SEK
Split dur profiles: 6495 SEK

JPM Billet Roller Kam

Pris vid förfrågan

JPM Stötstänger

7075 billet dual taper push rod.
Längd: 303mm
Diameter 9-12-9mm, invädig diameter 5mm.

Tack vare den stora ytterdiametern kan styvheten jämföras med den vanligt förekommande 3/8" stål PR


Pris: 8 stötstänger med ändar: 3995 SEK

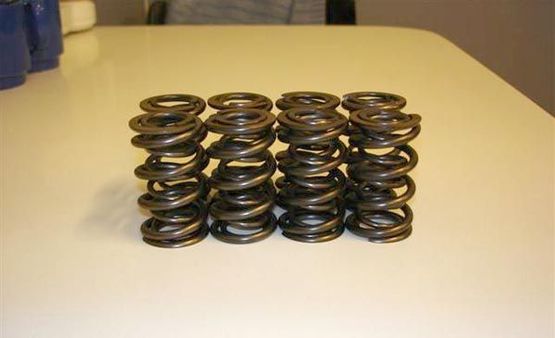

JPM OTEVA 90 Ventilfjädrar

OTEVA 90 Ventilfjädrar är vår egna ventilfjäder som utveckats i samband med vår MS230 topp. Fjädrarna är framtagna utifrån OTEVA 90 material.


Pris dubbla: 2274 SEK

Pris enkla: 1434 SEK

JPM Retainers

Pris titan: 2274 SEK

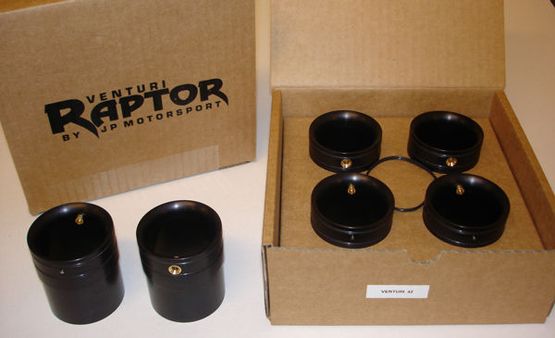

JPM Raptor Venturies

Pris Raptor Venturies: 3995 SEK



Registreringsbevis
This product is protected by design

The Raptor Venturie will rise the performance of your IDA without bore them to 51mm. If your IDA is choking your engine, the Raptor Venturie is a good improvement or if you want the top end perormance from a big venturie and still good driveabillity you can go one step smaller with the Raptors. Flow improves with 19 cfm changing from a std 42mm to a 42mm Raptor venturie.They are also available for 51mm IDAs

Tredje prog. hål och fullständig bestyckning på "rullande landsväg" med A/F mätare rekommenderas.

Instruktion:

  1. Demontera förgasarlocket, accpumps munstycket, spridare och halsring.
  2. Centrera styrstiftet på Raptor halsringen i spåret i förgasarhuset.
  3. Smörj in o-ringarna och tryck försiktigt ned halsringen tills den bottnar.
  4. Montera accpumps munstycket och förgasarlocket.

Bestyckningsrekommendation:

Venturi size:
38-40mm 42-44 mm
Lågfart:
60-70  65-70
E-rör:
F20/F2  F20/F2
Luft:
170-180  170-180
Huvud:
150-170 180-185
Bandningsskruv:
0.75-1.5 varv ut fr stängd 0.75-1.5
Pumpventil:
0  0

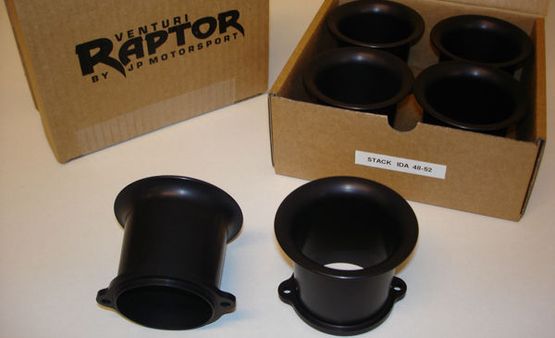

JPM Raptor Stacks IDA

Pris: 2995 SEK

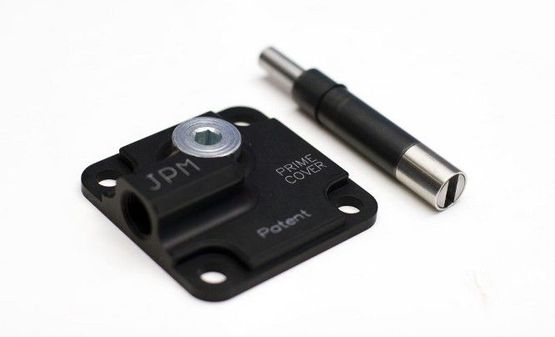

JPM Prime Cover kit

Med Prime Cover Kit från JPM får du omedelbart oljetryck utan att dra runt motorn (cranking).

Pris: 1495 SEK

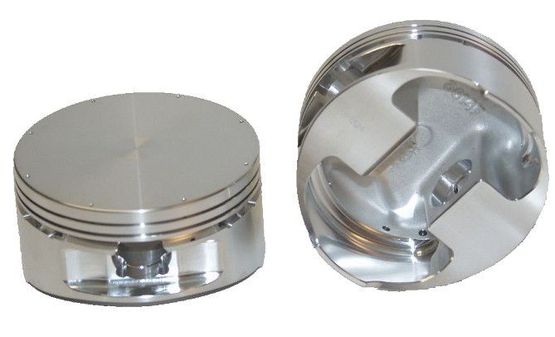

JE Kolvar

Våra egna specialdesignade VW kolvar med lägre vikt och friktion.
Pris: Pris sätts i samband med order.

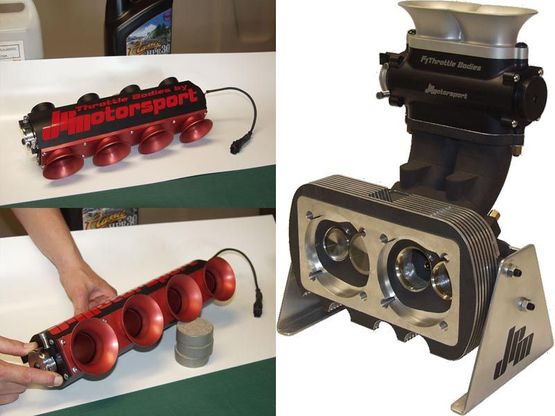

JPM F1 Rullspjällhus

Förmodligen den optimala spjällhusdesignen!
Vår F1 Throttle Body är tillverkas i en 5-axlig CNC maskin.
Pris: Pris sätts i samband med order

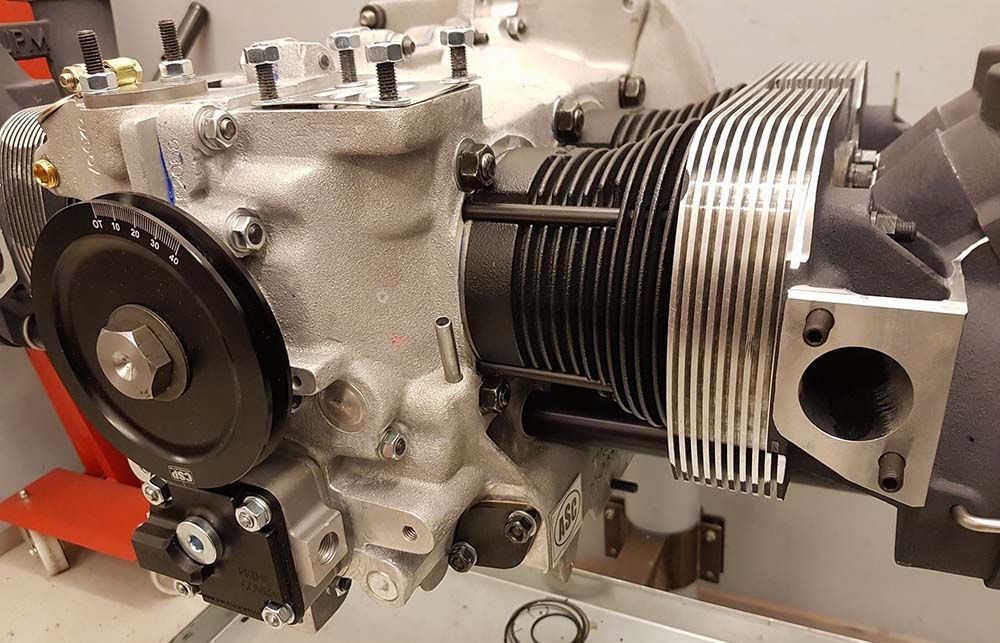

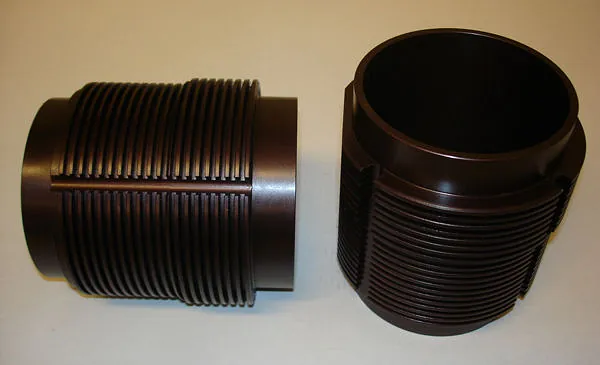

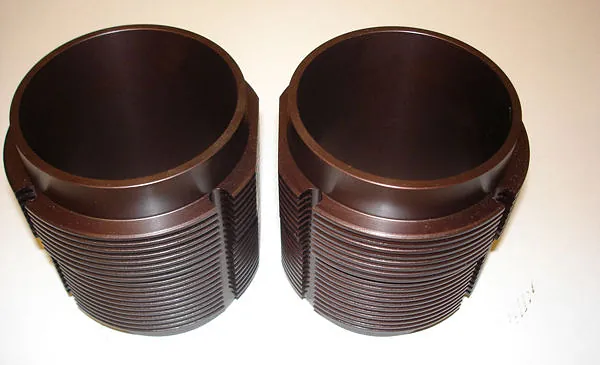

JPM Billet Cylinder

Ring för pris

JPM billet cylinder is made from cast iron with a very solide structure.  The material is commonly used for hydraulic cylinders with pressures that never is experienced in a combustion engine. The choise of material prevents the cylinder to expand too much and therefor the valve lash is still controlable when engine is hot.  A common problem when stepping up to 94mm bore is big crank case  breathing. The crank case breathing is because of a not circular  cylinder, too deep releases i for the head studs makes the cylinder like a square when torqued. Too big difference in material thickness causes the cylinder to deform when torqued.


PM billet cylinder has a very even thickness and therefor it is perfectly round when torqued to  specification. The OD of cylinder at top is made bigger(102mm 4.015")  than std(101.1mm 3.98").

Not avaliable at the moment

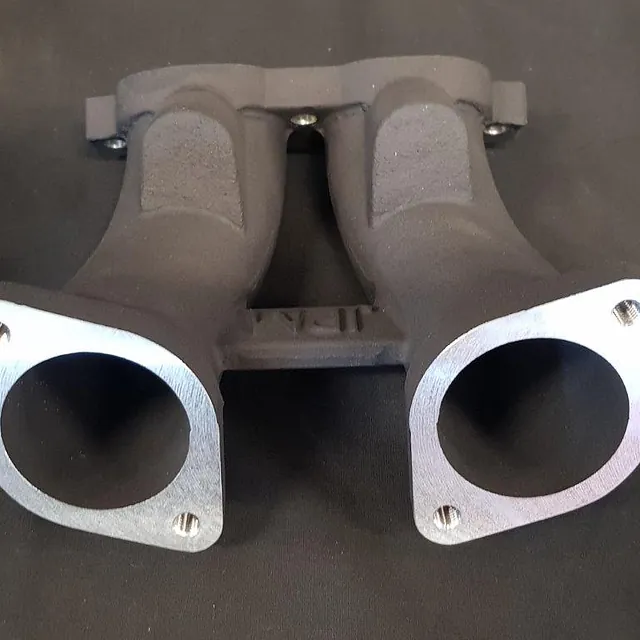

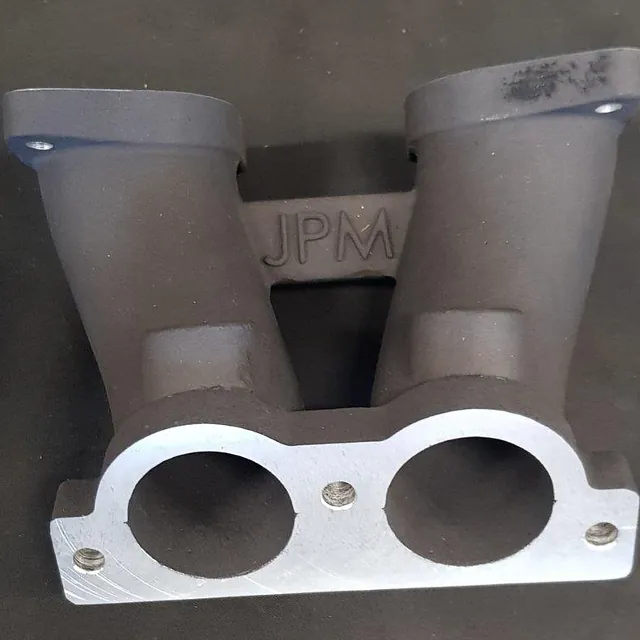

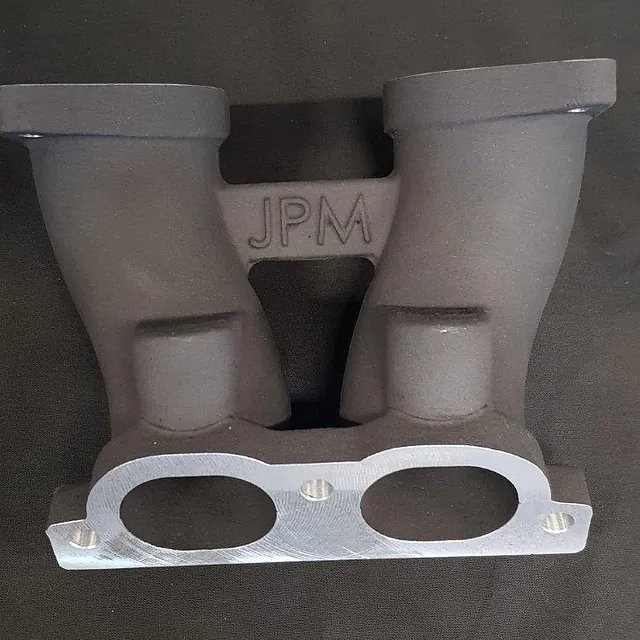

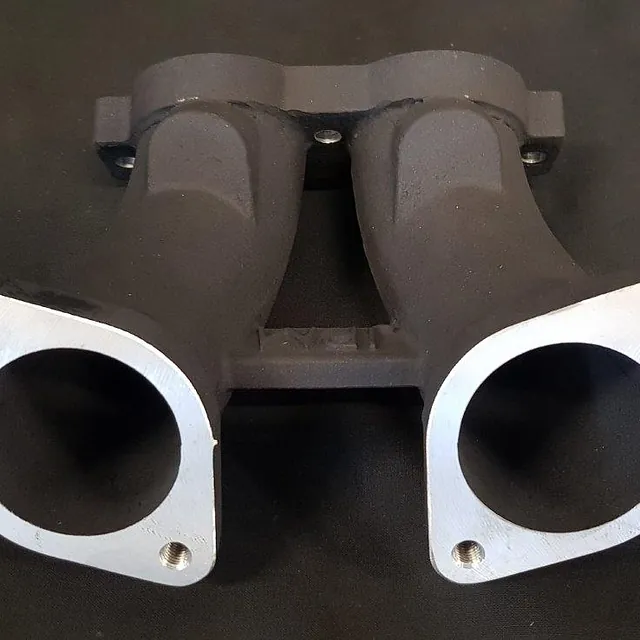

Insug/Manifold MS230 IDA

Pris: 5995sek/pair





Insug/Manifold MS250

Price 5995sek/pair



40-44-48 IDF Replica

Price: 3995sek/each

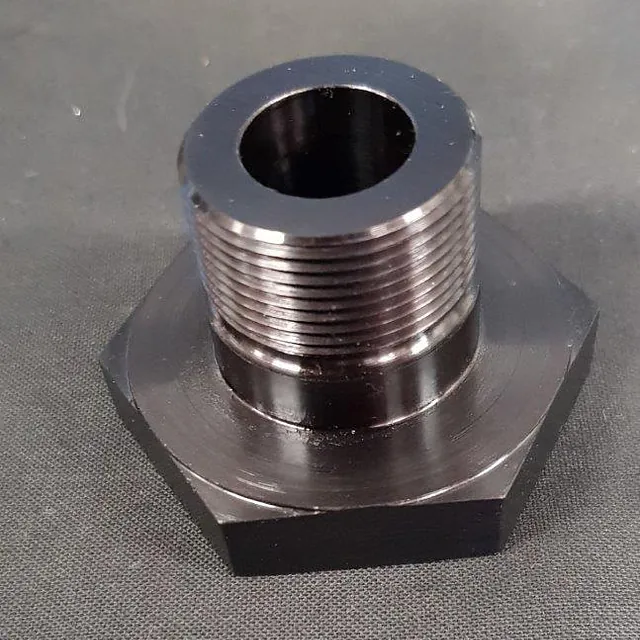

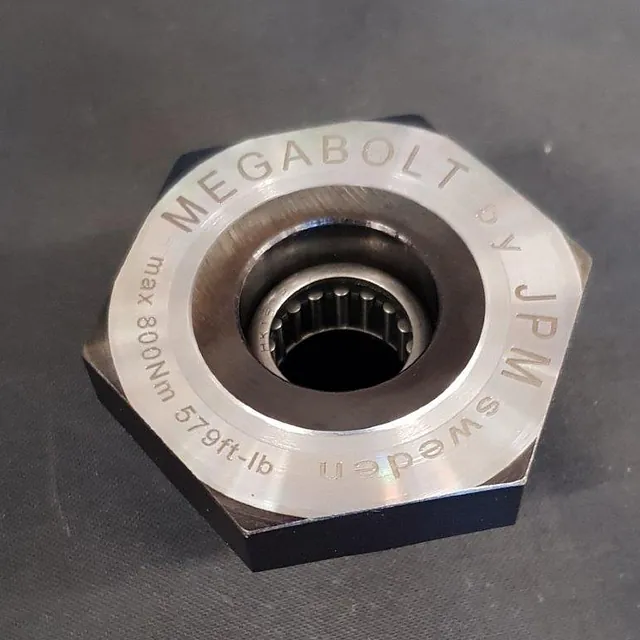

Megabolt/Glandnut

Megabolt/Glandnut with integrated washer, 48mm/1 7/8 socket.



Max torque 800Nm/579ft-lb



Price: 1495sek



Anti Chocker

Price: 2875sek





JPM T-shirts

Pris: 350 SEK
