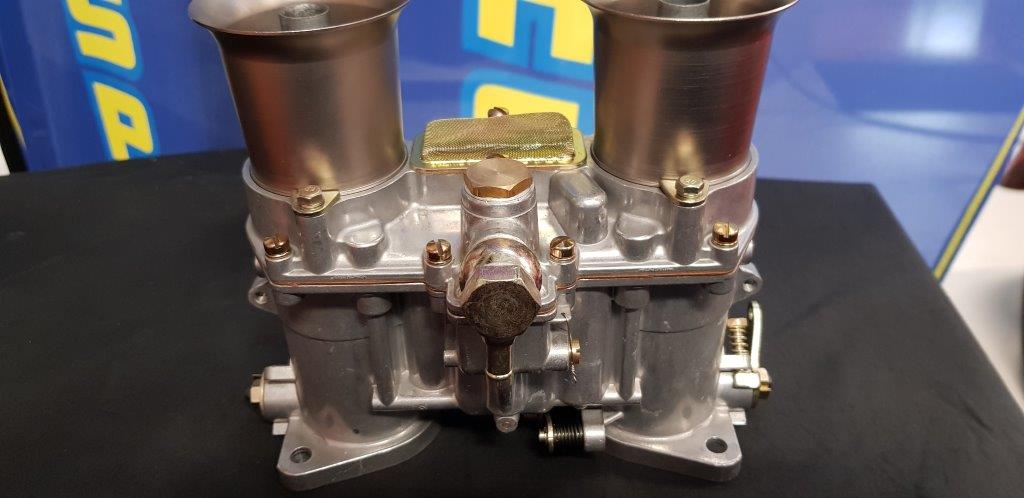

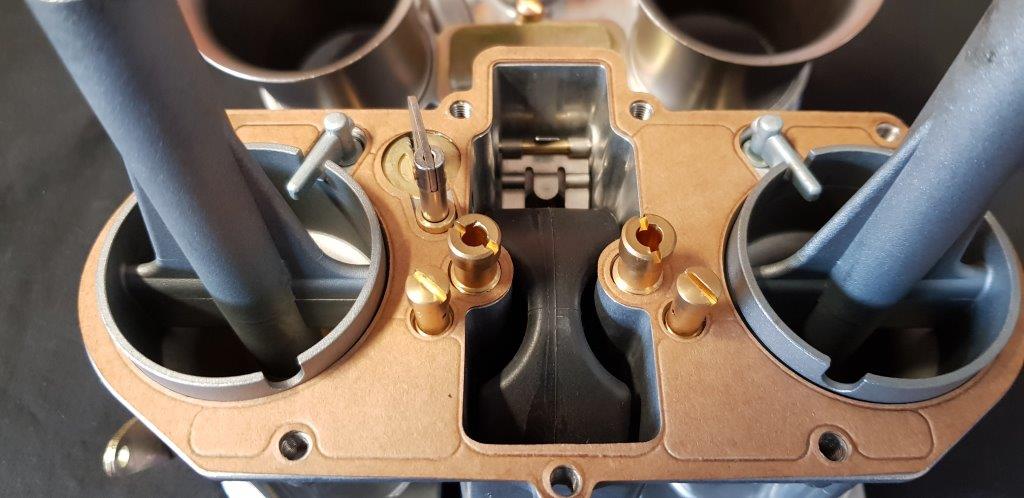

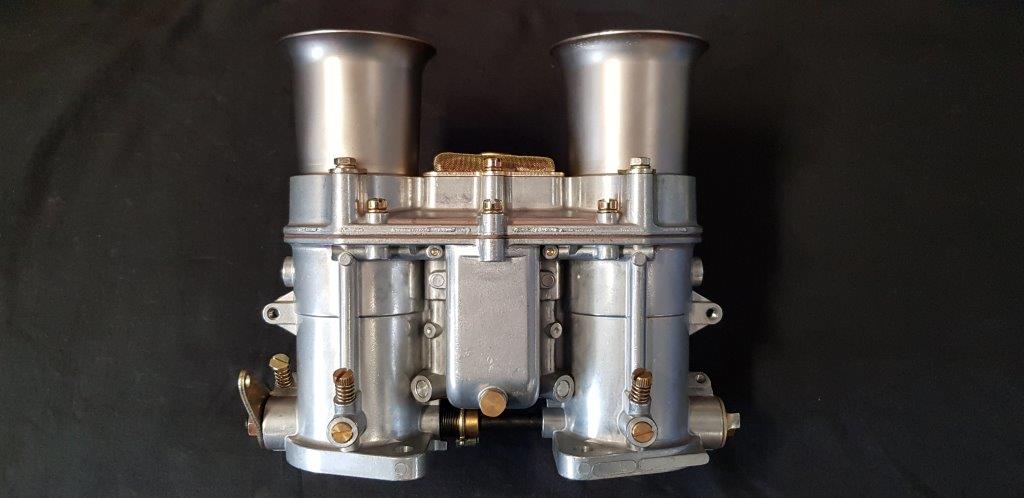

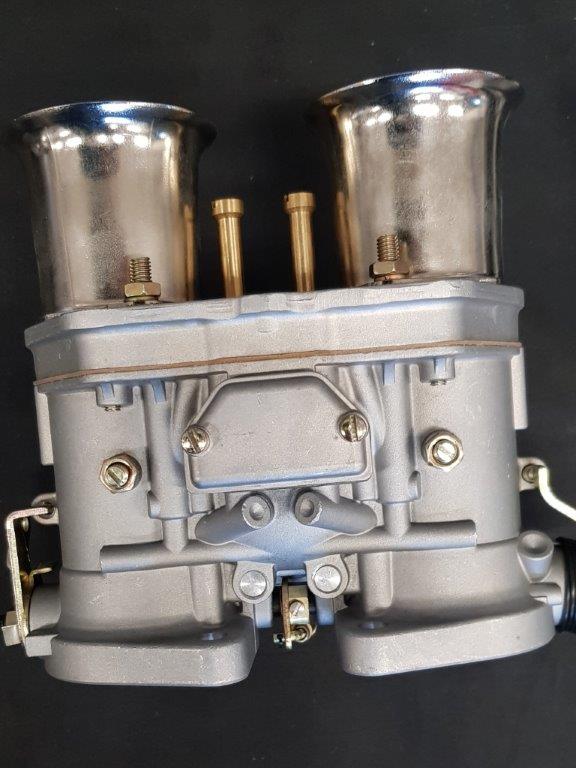

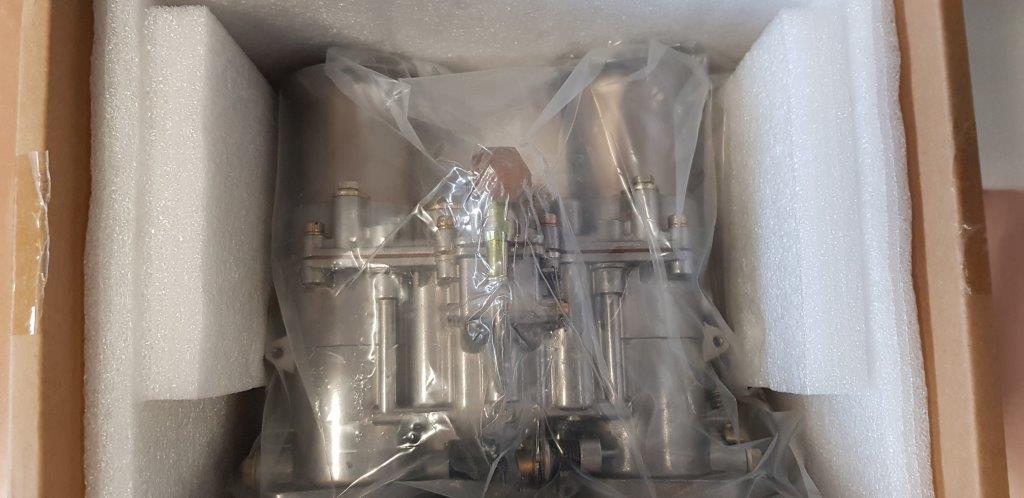

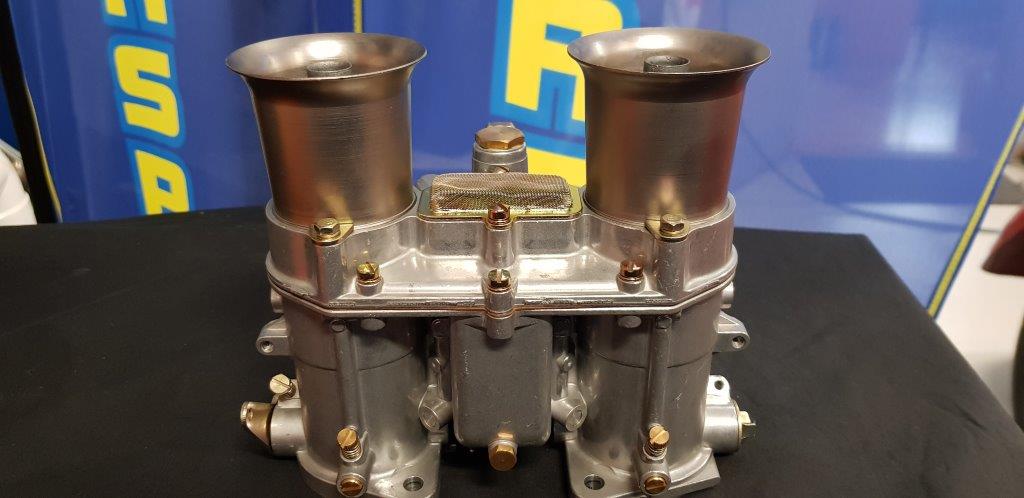

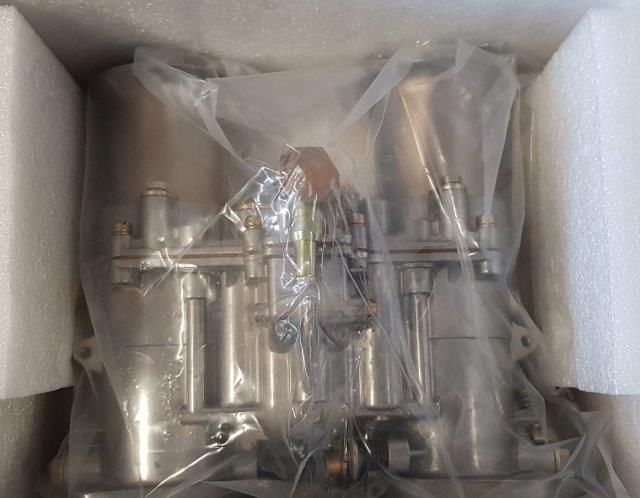

48 IDA REPLICA

Works great, looks great, sounds great!

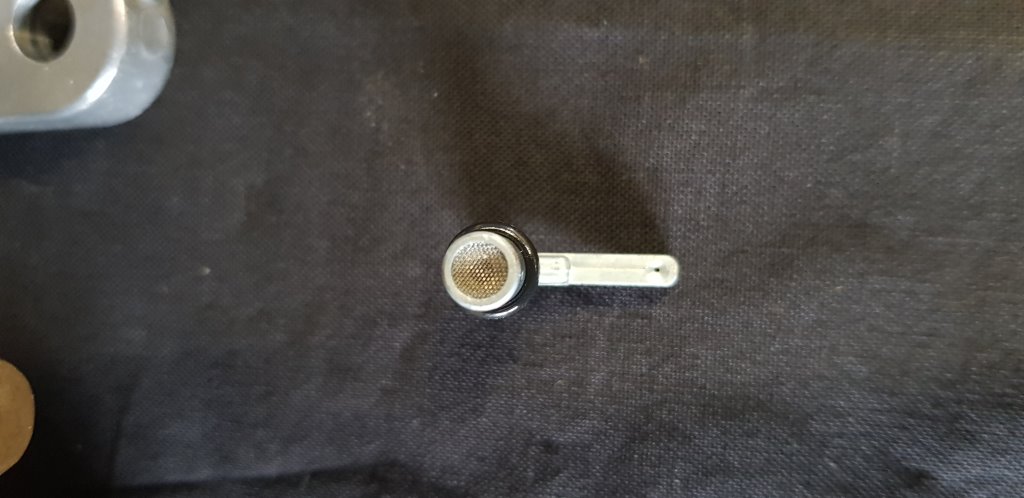

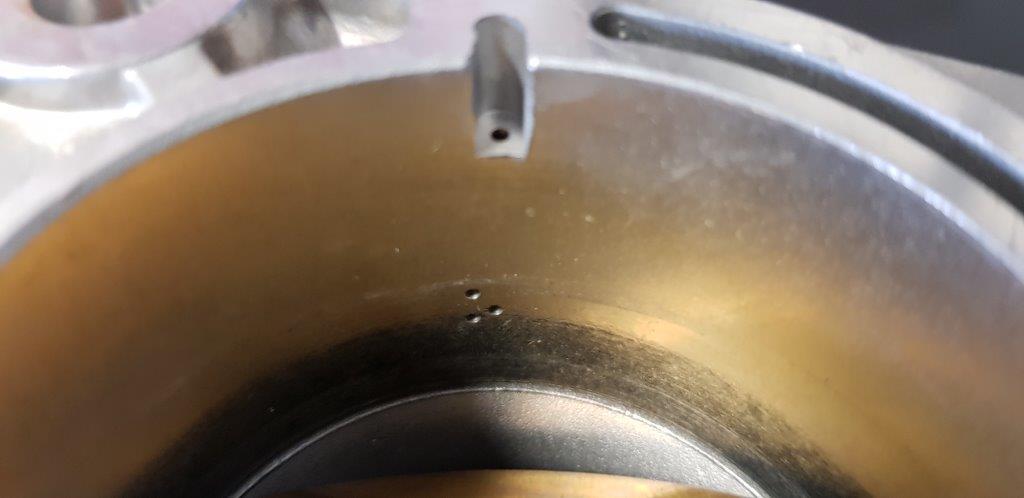

Very nice castings and machining. Comes with three progression holes. Screen on acc pump nozzel. Small ledge on the carb lid putting pressure on the gasket prevents leaking.



Price for Europe 4995 SEK approx.
Outside Europe 3996 SEK approx.
Raptor fuel parts fits.

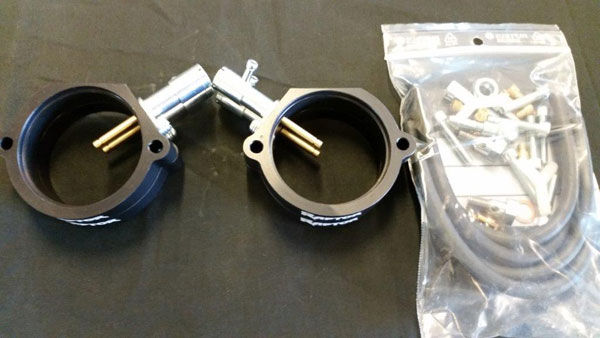

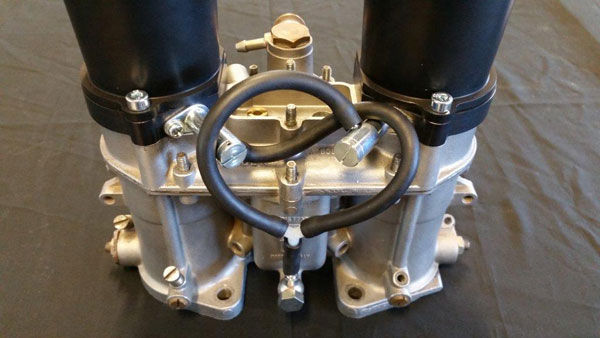

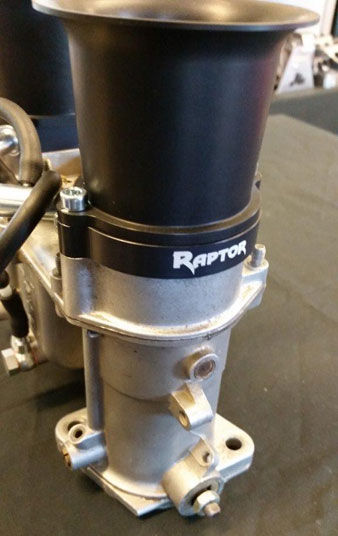

JPM Raptor Power Jet

Raptor Powerjet! A third fuel system for IDA carb. Makes the power band wider with a big increase in low and midrange performance, also some improvements in highrpm. Reduces the richness when throttle is opened suddenly at low rpm. Reduction of main jet, approx. 20-25numbers(165-140). The Powerjet has it's own jet which can be changed, delivers with three different jet sizes.

  • Makes the power band wider and smoother
  • More power through the rpm band
  • Go wilder on street performance
  • More cam etc, still very driveable
  • Very easy and quick to install, all parts included in the kit
  • Old main fuel system now works as a mid fuel system and the powerjet as a high speed fuel system.

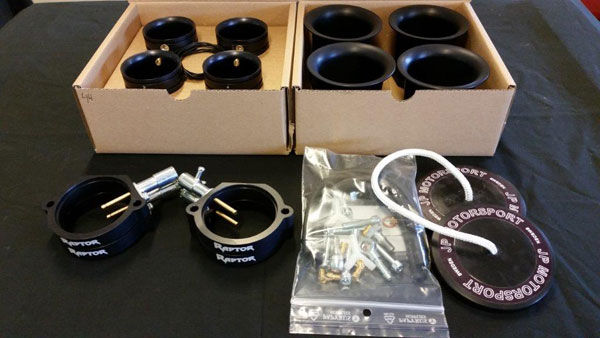

Raptor fuel system:

- Raptor venturies
- Raptor stack
- Raptor Powerjet

Price: 11605 SEK


Raptor Powerjet price: 4995 SEK

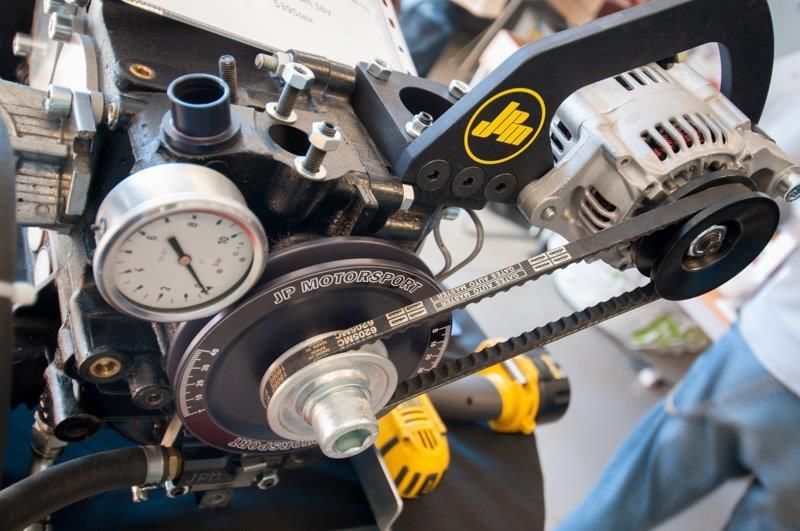

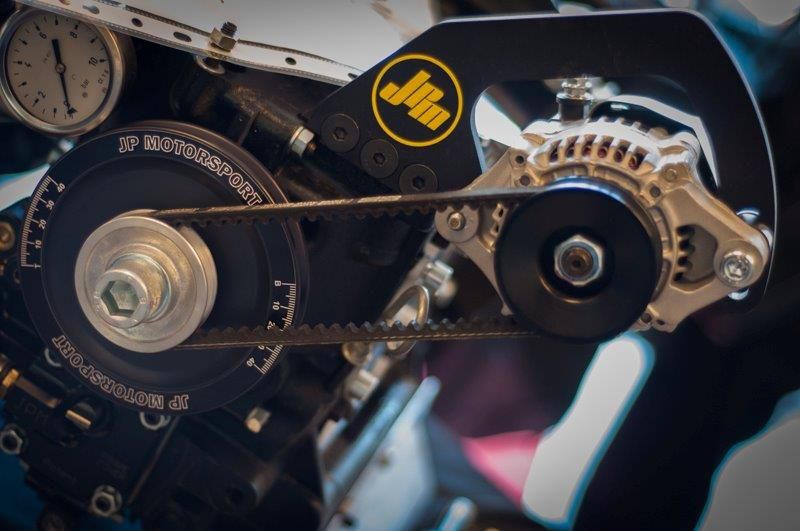

JPM Alternator Race Kit

Kit includes: Micro alternator 12V/55amp also available at 16V.
Anodized billet alu bracket. Crank pully with custom bolt, washer and belt.

Price: 6995 SEK

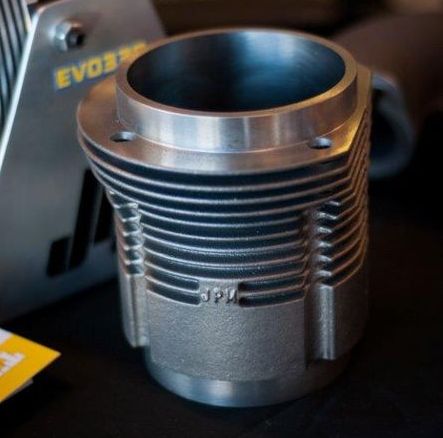

JPM Cylinder 92-94mm

JPM Cylinder 92-94mm (121mm long, up to 105mm OD).



New stronger design, made out of the same properties cast iron as in Volvo and Scania truck engine case.
Now available. 9450 SEK

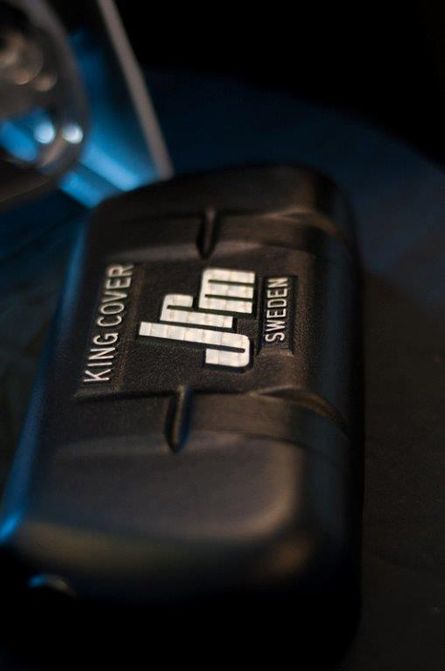

JPM King Cover Cast Alu Valve Cover

Price: 2495  SEK per piece

King Cover with machined O-ring groove and stainless steel bail.

Instructions:

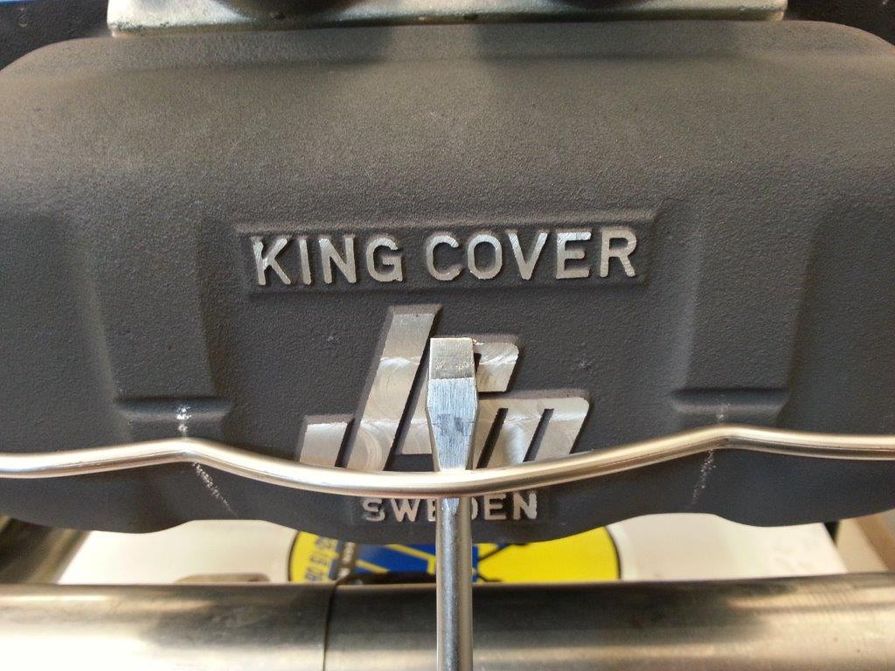

To scratch the King Cover as little as possible, put the screwdriver like this when securing the bail.

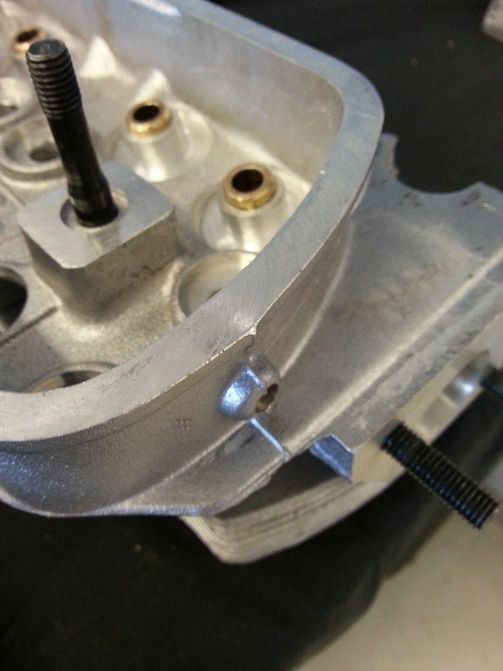

Some heads have a casting knob that has to be removed to fit the King Cover properly.

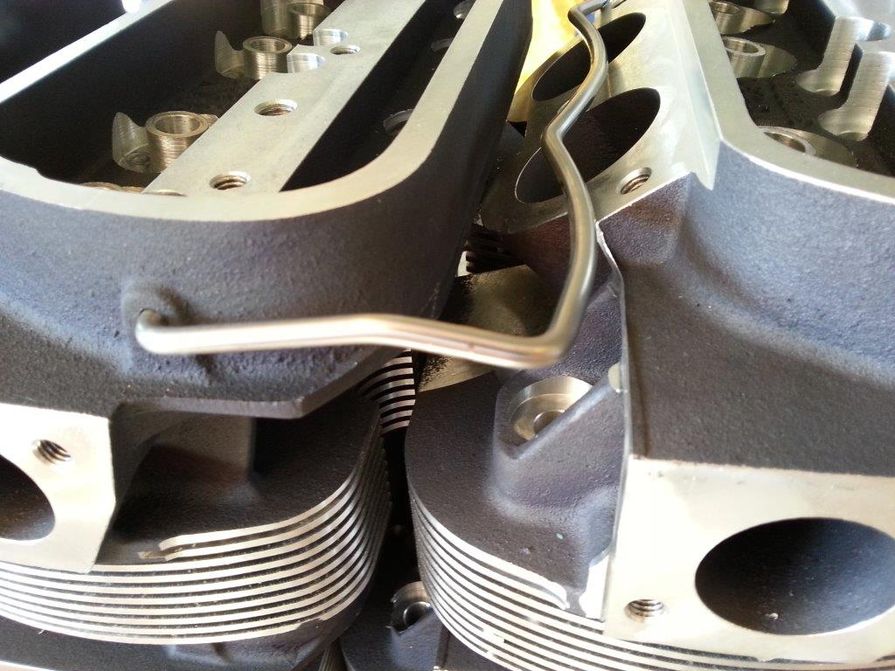

The bail mounting hole is drilled differently from head type to head type. If tension in bail should be too loose, make a bend as shown in the picture and tension is increased.

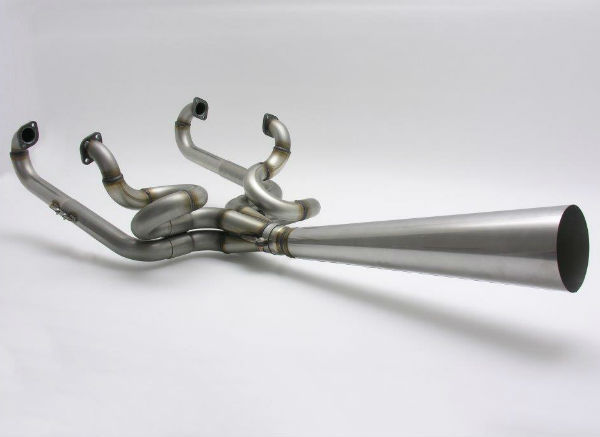

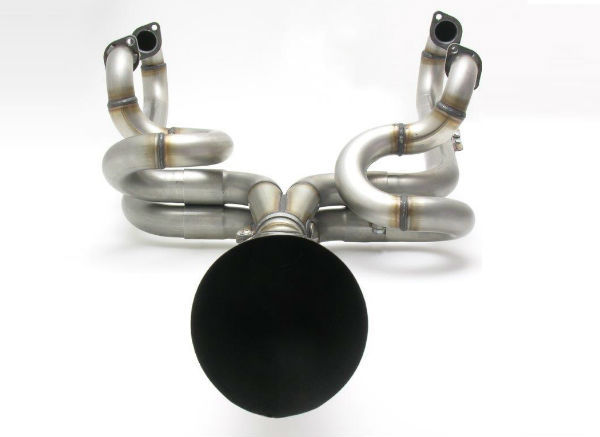

JPM Wasp Street & Strip Header

JPM and CSP teamed up to develop a revolutionary exhaust system for strip and street use!

The main features are:
- three step header for imporved volumetric efficiency
- adjustable header pipes for every engine width
- matching megaphone, creating strong suction over wide rpm range
- matching muffler for street use is afoot

- computer simulated design
- 2 years of development on dyno
- track tested

- for Beetles with Type 1 engines
- 3 different sizes available
- stainless steel- fits stock engine tin
- fits without body modifications

Ask us about the price

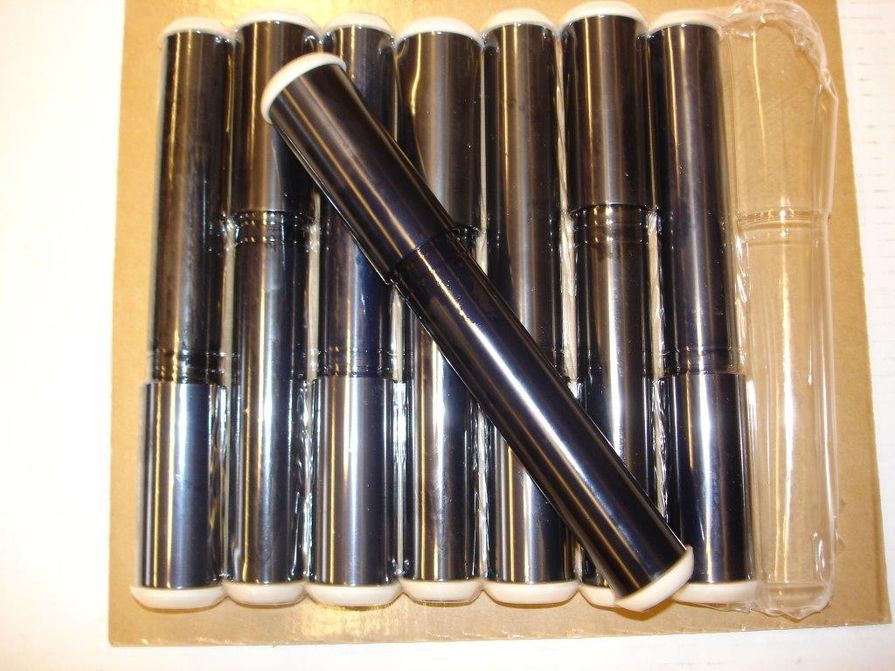

JPM Push Rod Tube

Push rod tubes with big id, developped to clearence our 7075 billet dual taper push rod. Precision machined in high quality aluminum with dual Viton o-rings.
Multiple o-ring groves makes it possible to reduce overall length.

Price: 2895 SEK / 8 pcs

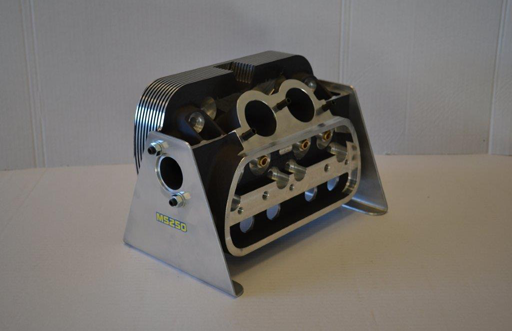

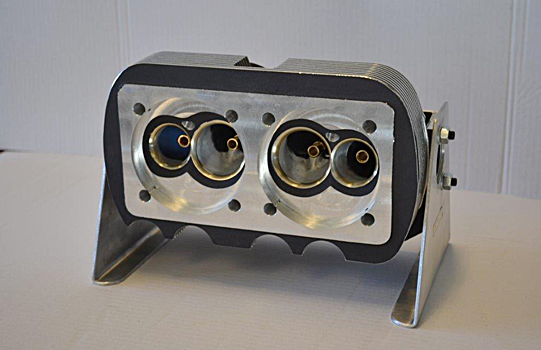

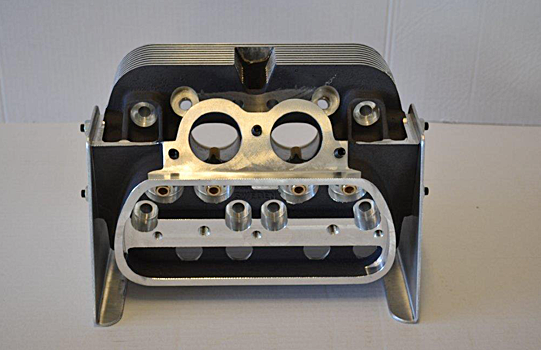

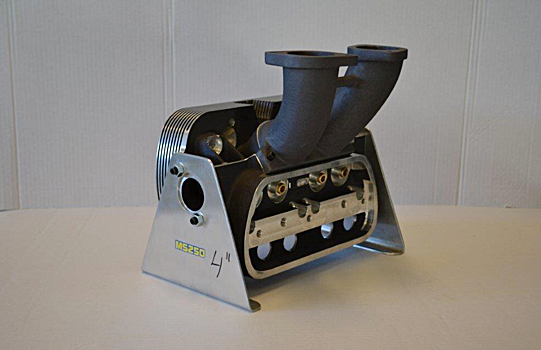

JPM MS250 Cylinder Head

Bore size: 94mm/4"(4" six stud)
Valve size: 48x38mm
Rockers: two/five stud
Chamber cc. 94mm: aprox 37, 4" aprox 40
Flow at 25" H2O: In 255cfm Ex 180cfm
Flow at 28" H2O: In 270cfm Ex 190cfm
Valve spring: OTEVA90
Manifold: JPM
Retainer: Titanium
Valves: Manley ss.


Price:

94 mm bore: 39.995 SEK / Complete pair
4" borrning: 43.995 SEK / Complete pair

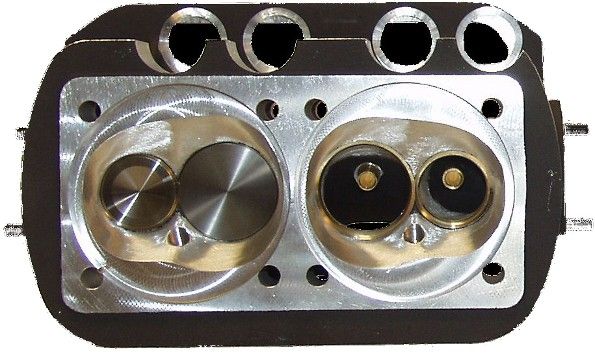

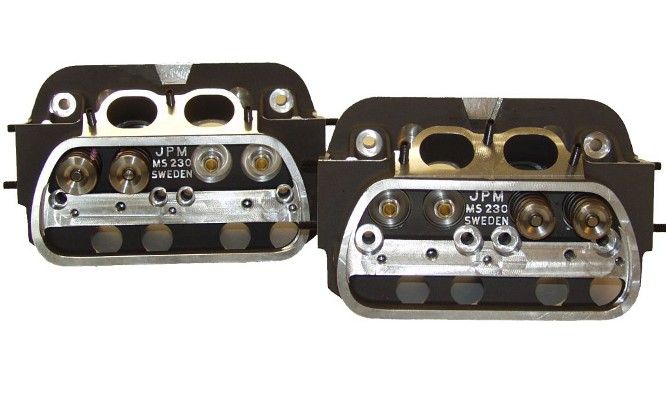

JPM MS230 Cylinder Head

MS230 has up to 50% more cooling area than other types of cylinder heads such as SF and CE, and 15% more than standard casting.

Our MS 230 cylinder heads are made of Alloy 356 heat treated T6 quality
(100-110 Brinell), and comes with 48x38mm Manley Type 4 valves, dual
valve springs OTEVA 90, JPM Titanium Retainers, and alubronze valve
seats.


The combustion chamber is 60cc to 65cc 94mm bore and 4 "bore.
MS230 is primarily developed for street use, but can of course also be used for full race engines for the best results.



Price:
94 mm bore: 35.995 SEK
4" bore: 41.995 SEK

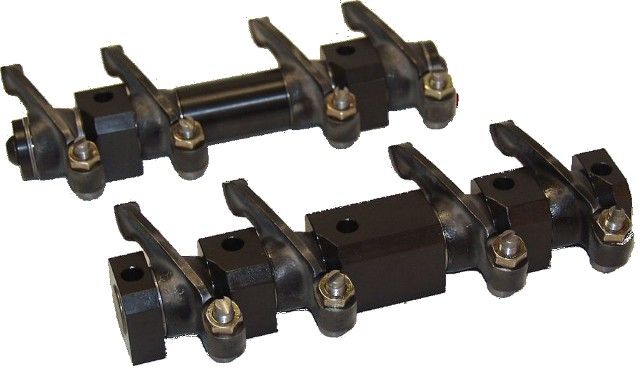

JPM Rocker Arms

JPM rockers are forged in Orvar Supreme steel and subjected to further heat treatment. In ratio 1,45-1,60:1. The shaft is 20mm diameter and made from
heat-treated tool steel. The adjusting screw is made of heat-treated H13
steel.



Price:
2 bolts: Not avaliable
5 bolts: 17.250 SEK


More l Images

JPM Raptor Cams

JPM is proud to offer the latest in CNC camshaft design. We work with the latest software when designing the valve lift curve. Custom-made profiles are
also available.

Price: 5995 SEK
Split dur profiles: 6495 SEK

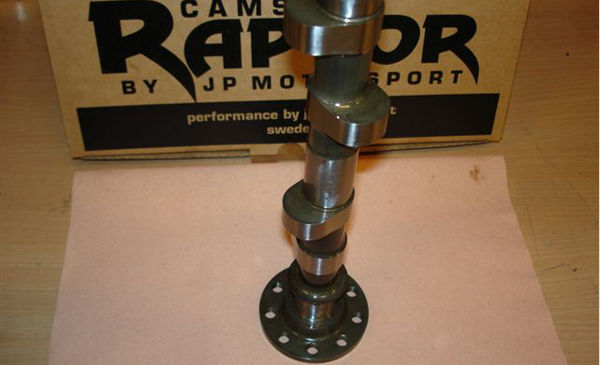

JPM Billet Roller Cam

Price upon request.

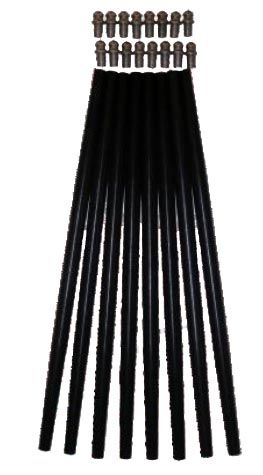

JPM Push Rods

7075 billet dual taper push rod.
Length: 303mm.
Diameter: 9-12-9mm.
Internal diameter: 5mm.


Thanks to the large outer diameter, the rigidity can be compared to the common 3/8" steel PR.



Price: 8 push rods with ends: 3995 SEK

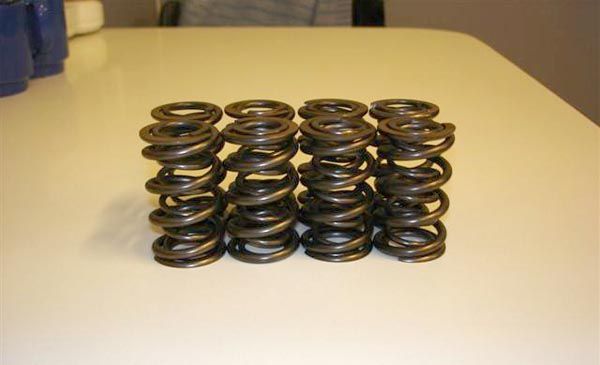

JPM OTEVA 90 Valve Springs

OTEVA 90 Valve Springs are our own valce springs that were developed in conjunction with our MS230 headtopp. The springs are produced based on OTEVA 90 material.


Price double: 2274 SEK

Price single: 1434 SEK

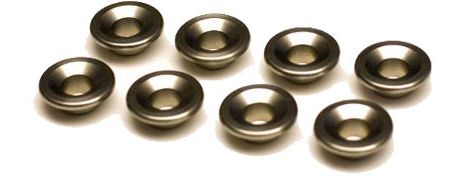

JPM Retainers

Price titan: 2274 SEK

JPM Raptor Venturies

Price Raptor Venturies: 3954 SEK



Registreringsbevis
This product is protected by design

The Raptor Venturie will rise the performance of your IDA without bore them to 51mm. If your IDA is choking your engine, the Raptor Venturie is a good improvement or if you want the top end perormance from a big venturie and still good driveabillity you can go one step smaller with the Raptors. Flow improves with 19 cfm changing from a std 42mm to a 42mm Raptor venturie.They are also available for 51mm IDAs

Instructions:

  1. Remove carburettor cap, acc pump nozzle, spreader and neck ring.
  2. Center the steering pin on the Raptor neck ring in the groove in the carburetor housing.
  3. Lubricate the o-rings and gently press down the neck ring to the base.
  4. Install the acc pumps nozzle and carburettor cap.

Jetting recommendations:

Venturi size:
38-40mm 42-44 mm
Idle:
60-70  65-70
E-tube:
F20/F2  F20/F2
Air:
170-180  170-180
Main:
150-170 180-185
Mixture screw:
0.75-1.5 out from closed 0.75-1.5
Pump jet:
0  0

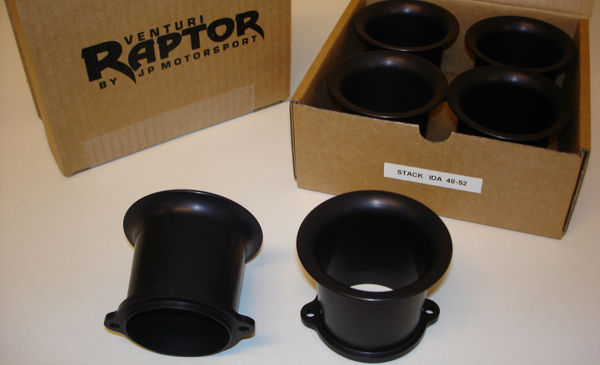

JPM Raptor Stacks IDA

Price: 2874 SEK

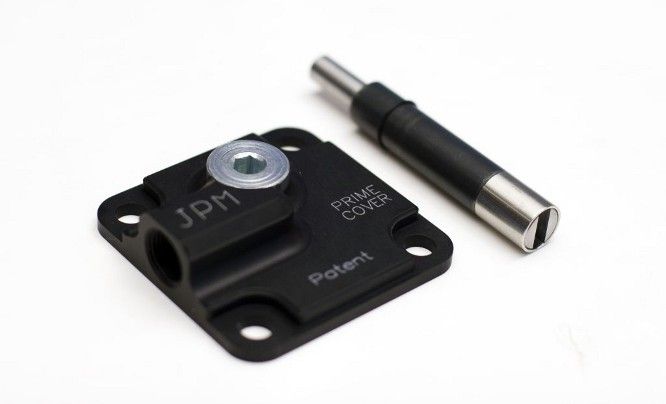

JPM Prime Cover kit

With Prime Cover Kit from JPM you get immediate oil pressure without pulling the engine (cranking).



Price: 1495 SEK

JE Pistons

Our custom-made VW pistons with les weight and friction.

Price upon order.

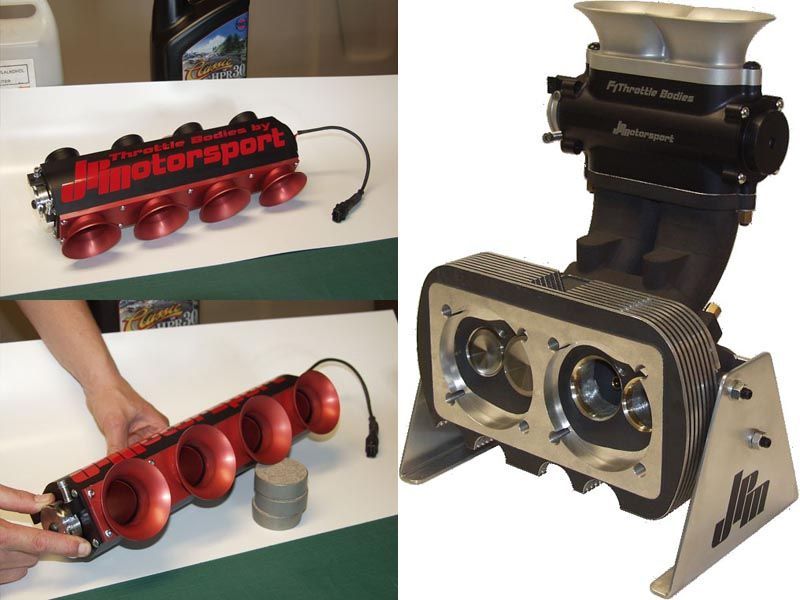

JPM F1 Roller Trottle Bodies

Probably the most ideal throttle body design ever!


Our F1 Throttle Body is made in a 5-axis CNC machine.


Price upon order.

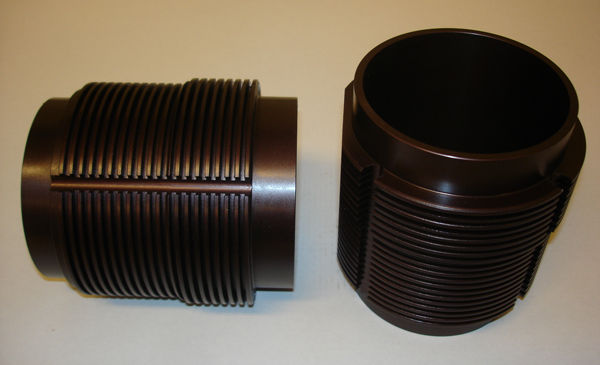

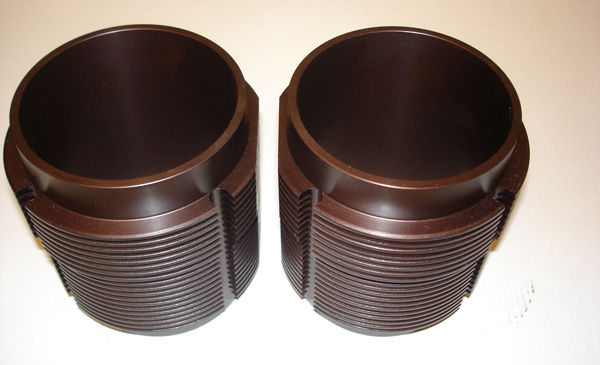

JPM Billet Cylinder

Phone for price

JPM billet cylinder is made from cast iron with a very solide structure.  The material is commonly used for hydraulic cylinders with pressures that never is experienced in a combustion engine. The choise of material prevents the cylinder to expand too much and therefor the valve lash is still controlable when engine is hot.  A common problem when stepping up to 94mm bore is big crank case  breathing. The crank case breathing is because of a not circular  cylinder, too deep releases i for the head studs makes the cylinder like a square when torqued. Too big difference in material thickness causes the cylinder to deform when torqued.


PM billet cylinder has a very even thickness and therefor it is perfectly round when torqued to  specification. The OD of cylinder at top is made bigger(102mm 4.015")  than std(101.1mm 3.98").



Not avaliable at the moment

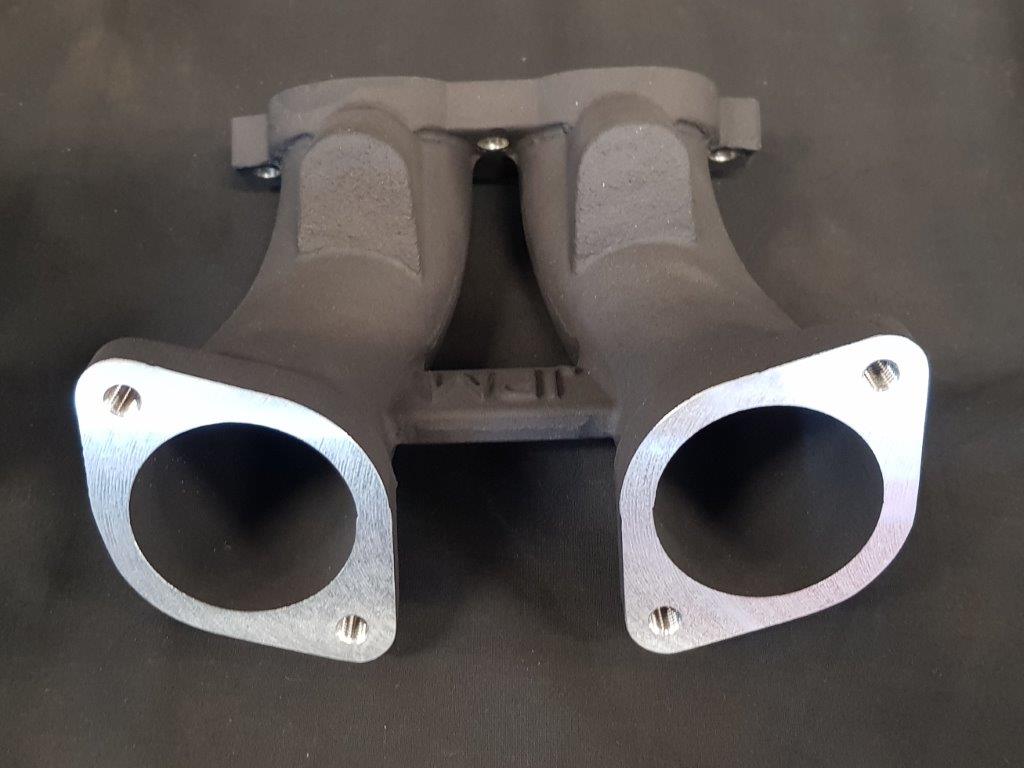

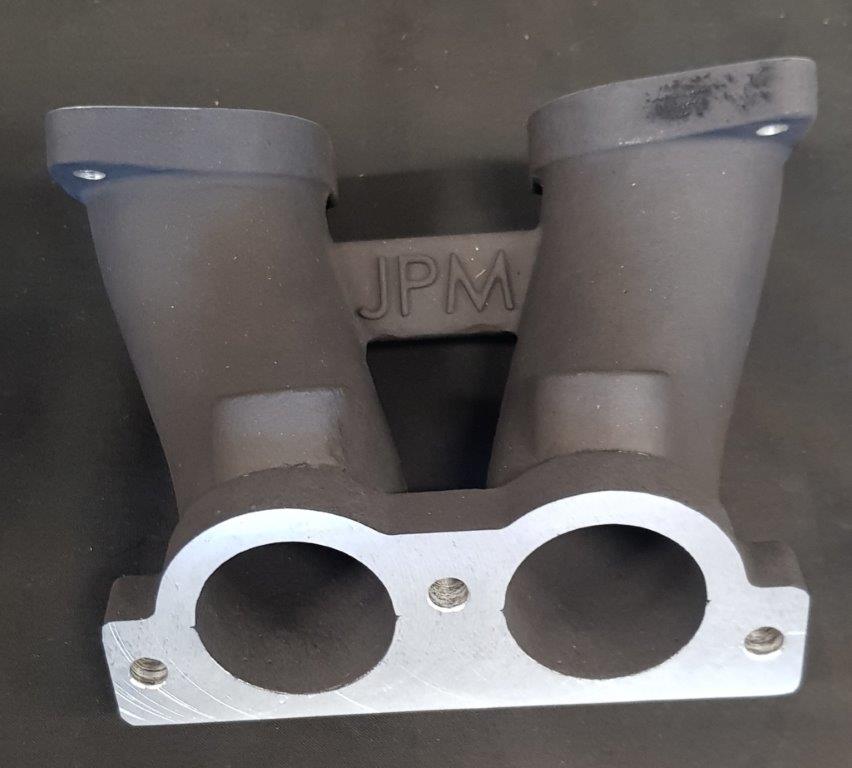

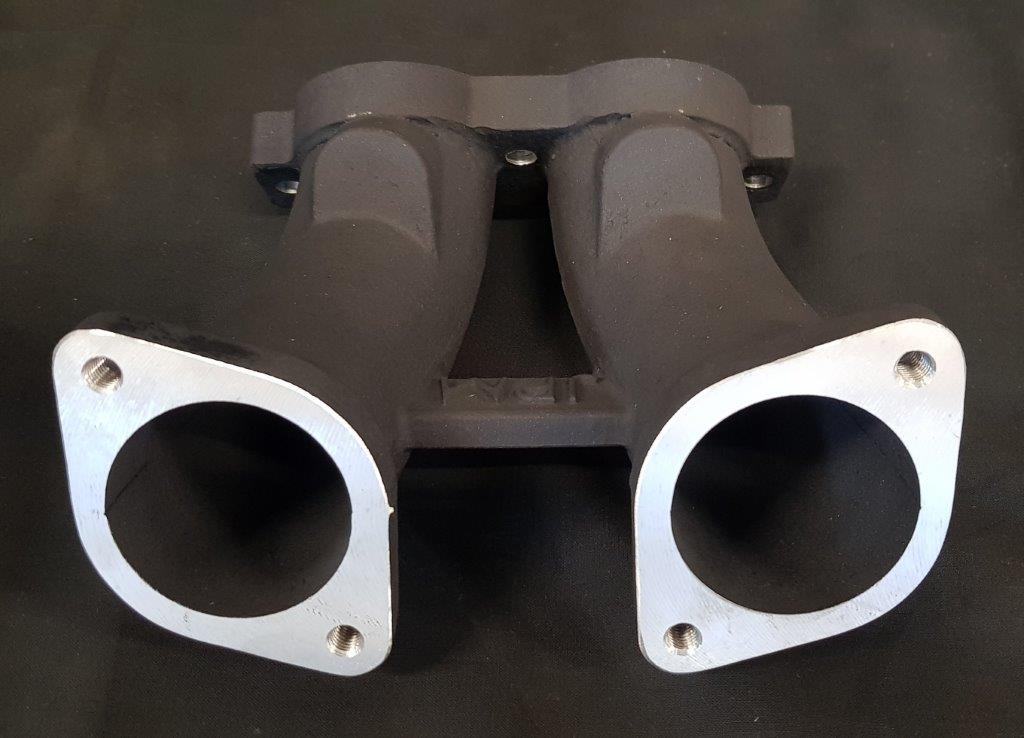

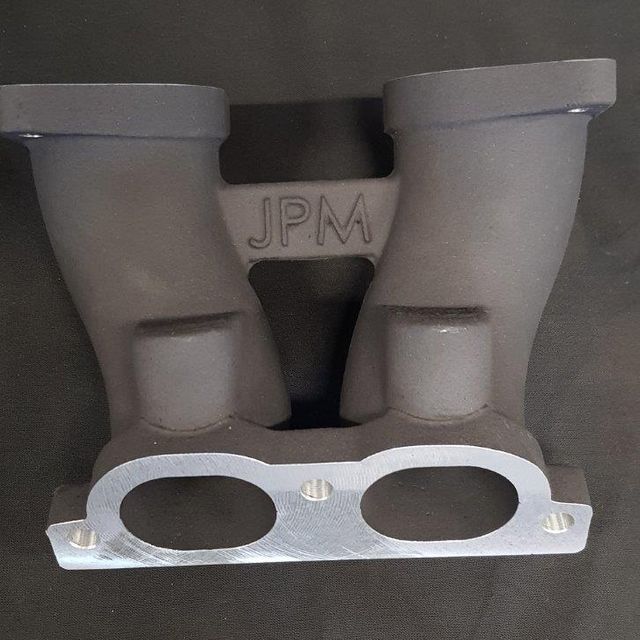

Insug/Manifold MS230 IDA

Pris: 4995sek/pair

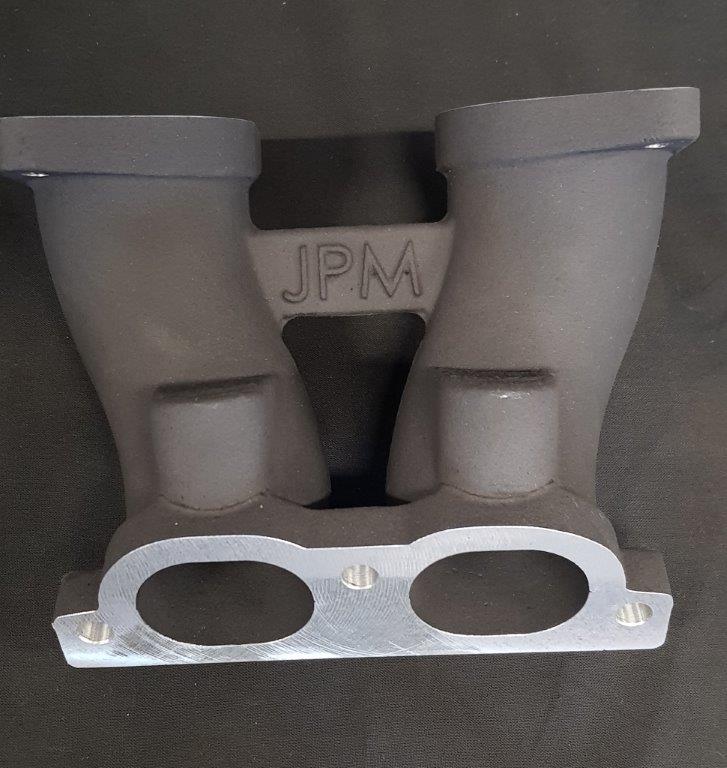

Insug/Manifold MS250

Price 4995sek/pair

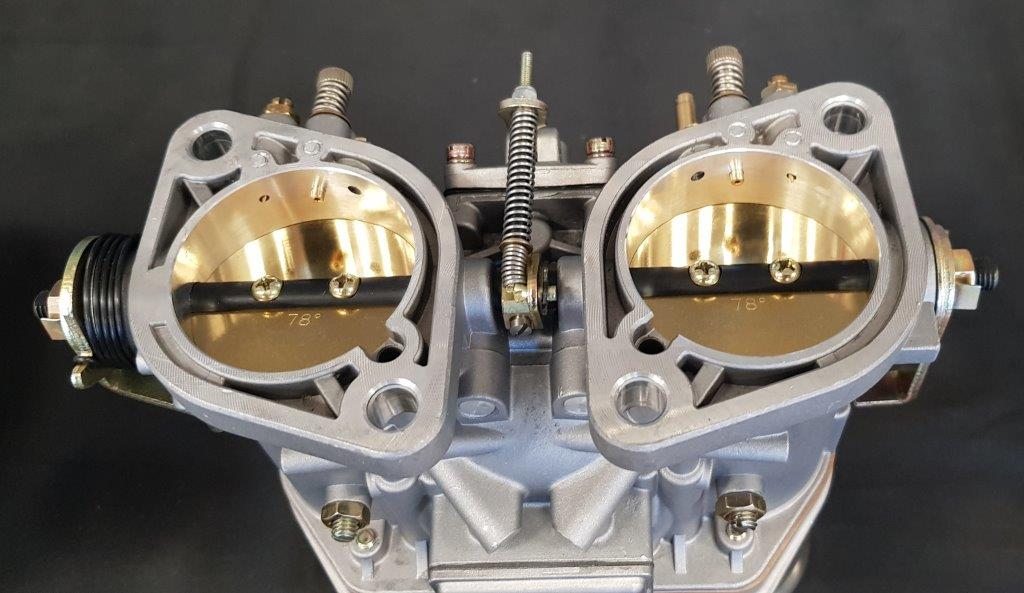

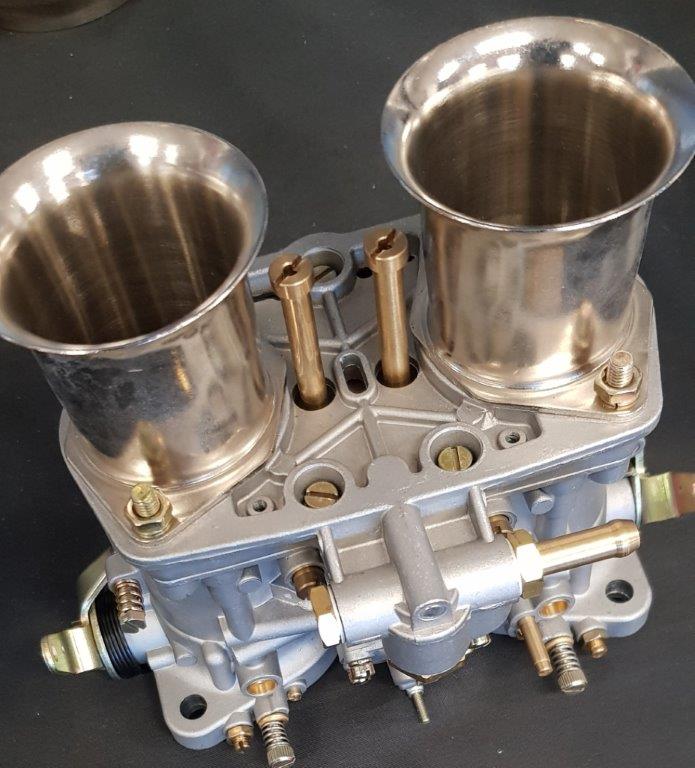

40-44-48 IDF Replica

Price: 3495sek/each

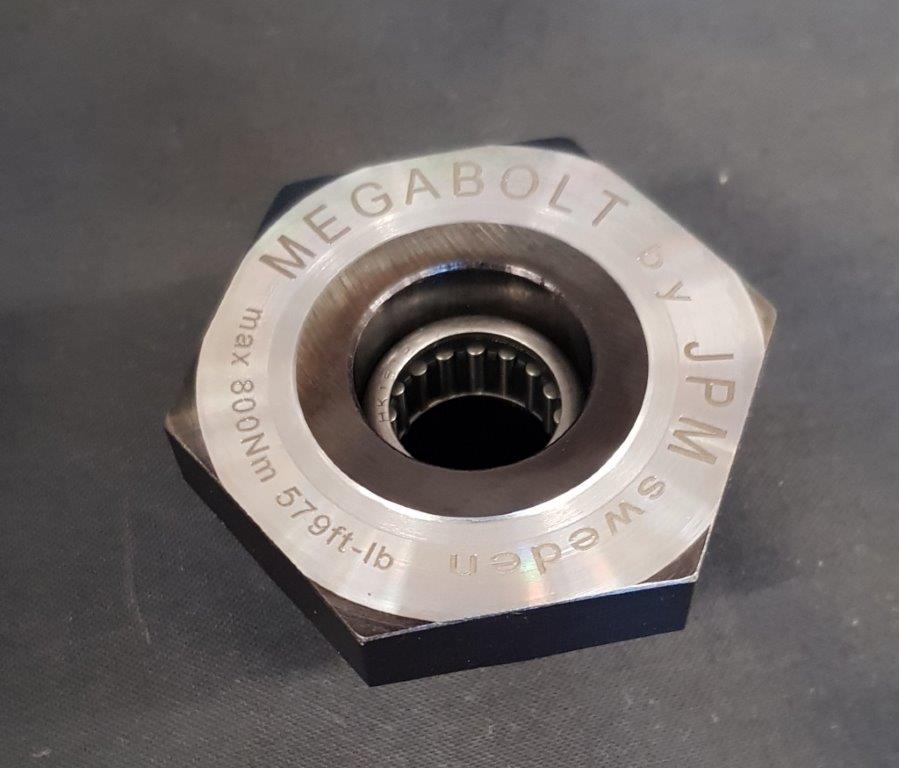

Megabolt/Glandnut

Megabolt/Glandnut with integrated washer, 48mm/1 7/8 socket.



Max torque 800Nm/579ft-lb



Price: 1495sek

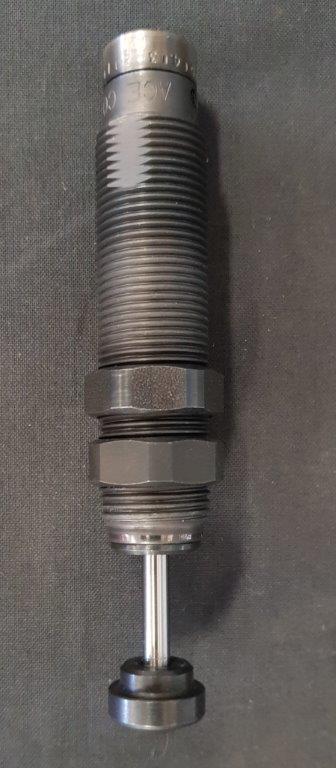

Anti Chocker

Price: 2875sek





JPM T-shirts

Price: 350 SEK
